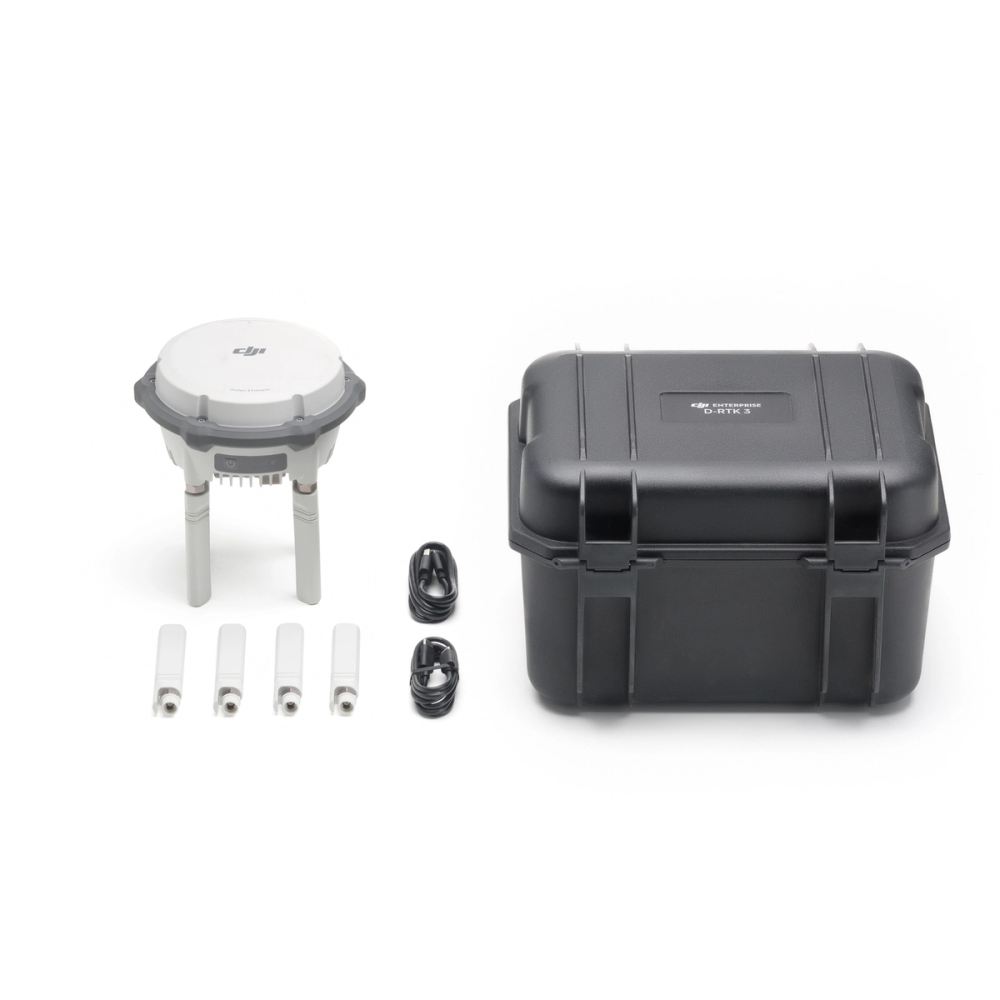

D-RTK 3 Multifunctional Station
This multifunctional station offers 2mm accuracy, 25km OcuSync 4 transmission, and IP67 protection for tough conditions.
Product dossier
Compact, powerful, and reliable for precise positioning in any environment.
Precision and Durability Redefined
- Compact and Lightweight:
Measures Φ 163mm × 89mm and weighs just 1.26kg, making it easy to carry in one hand.
- User-Friendly Controls:
Equipped with physical buttons and indicator lights for power, mode switching, and status display.
- Versatile Compatibility:
Features a standard 5/8-inch mount for third-party poles and a USB Type-C port for charging and debugging. It is compatible with a range of DJI drones. Please refer to FAQs for full compatibility list.
- Advanced OcuSync 4 Enterprise:
Utilises four external antennas for a maximum range of 25 km.
- High-Performance Core:
Includes a self-developed RTK chip, air dielectric antenna with physical filtering, and phase-centre accuracy of ≤ 2mm.
- Extended Battery Life:
Offers up to 4 hours as a relay, 7 hours as a base, and 10 hours as a rover.
Full specifications
Manuals & documents
Customer reviews
“excellent kit, multiple uses (rover base station relay, and at a reasonable cost. Delivery turned up next day. I can not fault it, and exceptionable quality.”
Frequently asked questions
What is the D-RTK 3 Multifunctional Station compatible with?⌄
The D-RTK 3 Multifunctional Station is compatible with a range of DJI drones.
Base Station Mode:
• DJI Matrice 4E and Matrice 4T
• Matrice 4D, Matrice 4TD (DJI RC Plus 2 Enterprise)
• DJI Matrice 3D/3TD (DJI RC Pro Enterprise)*
• Matrice 300/350 RTK*
• Matrice 30 Series*
• DJI Mavic 3 Enterprise Series*
• T60*
• T50/T25*
• T40/T20P*
• DJI FlyCart 30*
• DJI Inspire 3*
• DJI FlyCart 100.
*Currently, only manual D-RTK 3 position calibration is supported. Please refer to official updates for future feature enhancements.
Relay Station Mode:
Supports Matrice 4E/Matrice 4T. Also FlyCart 100.
Rover Station Mode:
Supports Bluetooth 5.1, compatible with Android 10 and above
What modes does the D-RTK 3 Multifunctional Station support? What are their functions?⌄
The DJI D-RTK 3 Multifunctional Station supports Broadcast Mode, Relay Station Mode, and Rover Station Mode.
• Broadcast Mode (Green Light): Used to provide accurate data for centimeter-level positioning to improve operation precision for multiple DJI aircraft simultaneously.
• Relay Station Mode* (Blue Light): After connecting to the specified compatible DJI aircraft and remote controller, installed at a high place and used as a communication relay to avoid signal blockage during operation.
• Rover Station Mode (Yellow Light): Used as a handheld mapping device for measuring control points.
* This feature is unavailable in countries or regions without 5GHz frequency support. Check local laws and regulations for more information.
What callibration options does the D-RTK 3 Base Station have?⌄
The D-RTK 3 Base Station has three calibration options:
1. Custom Network RTK: Use your own CORS account for location calibration
2. PPP: Free self-developed PPP solution that provides decimetre-level positioning with no network connection.
3. Manual Calibration: Similar to D-RTK 2 operation, deployed at known points, manually input Base coordinates and pole height
How do I activate the D-RTK 3 Multifunctional Station? What activation methods are available?⌄
Relay Station Mode and Broadcast Mode can be activated using DJI Pilot 2.
If the remote controller firmware hasn't been updated, you can activate these modes via DJI Assistant 2 (Enterprise Series).
What coordinate systems does the D-RTK 3 Multifunctional Station support?⌄
By default, the Relay Station Mode and Broadcast Mode use the WGS84 coordinate system.
The Rover Station Mode provides latitude, longitude, and altitude by default, with the coordinate system being determined by the RTK source used. You can use the built-in coordinate conversion feature in the DJI Enterprise app to convert these coordinates into standard projection formats.
