DJI · Payloads

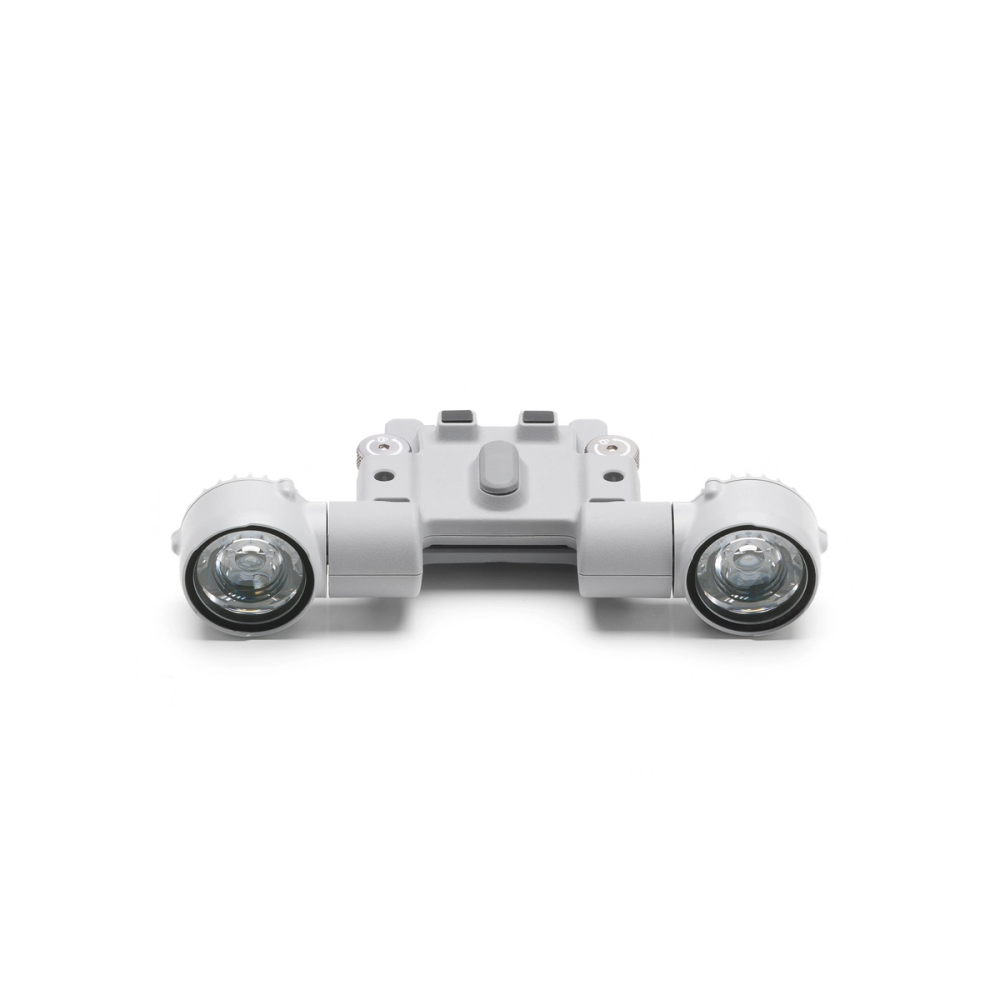

DJI AL1 Spotlight

SKU CP.EN.00000579.01

The DJI AL1 Spotlight provides powerful illumination for subjects up to 100 metres away, enhancing visibility in low-light conditions. With two modes - Always-On and Strobe - and intelligent gimbal following, it ensures precise, adaptable lighting for a range of aerial applications. It can be used on its own or with the DJI AS1 Speaker. The AL1 is compatible with DJI Matrice 4 Series drones.

5+ in stock — UK warehouseNext-day if ordered before 3pm50-day returns
DJI AL1 Spotlight£259.00
Total today£259.00
Tax included in UKFree UK delivery
Pay with

Product dossier

DJI AL1 Spotlight

A versatile spotlight designed to illuminate and track with accuracy.

Precision Lighting for Aerial Missions

  • Long-Range Illumination:

    Brightly lights up subjects up to 100 metres away for clear visibility.

  • Dual Lighting Modes:

    Choose between Always-On and Strobe modes to suit your operational needs.

  • Smart Tracking:

    Features intelligent gimbal following for precise and consistent spotlight positioning.

  • Versatility:

    The spotlight can be used on its own, or deployed alongside the DJI AS1 Speaker (available separately) to meet a range of applications.

  • Compatibility:

    The AL1 Spotlight is compatible with DJI Matrice 4 Series drones.

Precision Lighting for Aerial Missions

Full specifications

DJI AL1 Spotlight
Specifications
Weight99g (including bracket) / 91g (excluding bracket)
Size (L x W x H)95 mm x 164 mm x 30 mm (including bracket) / 79 mm x 164 mm x 28 mm (excluding bracket)
Max Power32W
Illumination4.3 ± 0.2 lux @ 100m | 328ft / 17 ± 0.2 lux @ 50m | 164ft
Effective Illumination Angle23° (10% relative illuminance)
Effective Illumination Area1300m² @ 100m | 328ft (10% relative illuminance, normal mode) / 2200m² @ 100m | 328ft (10% relative illuminance, wide FOV mode)
Operation ModeAlways-On and Strobe

Manuals & documents

1 file
DJI AS1 Speaker and DJI AL1 SpotLight User ManualPDF · 7.2 MB

Frequently asked questions

Which drones can I use the DJI AL1 Spotlight with?⌄

The DJI AL1 Spotlight is compatible with DJI Matrice 4 Series drones.

What functions are supported with the DJI AL1 SpotLight?⌄

• Key functions include of the DJI AL1 Spotlight include:

1. DJI AL1 SpotLight supports always-on and strobe modes; support enabling and disabling follow gimbal orientation mode.

2. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

3. Added wide fov lighting mode, which can illuminate a wider area.*

* Please upgrade the firmware to the latest version.

What are the usage tips for the DJI AL1 Spotlight?⌄

To optimise performance and maintain efficiency, consider the following tips:

1. Enable Electronic Defogging: Activate the electronic defogging function when using the spotlight in wide-angle or 1X mode to improve image quality.

2. Manage Brightness: Reduce the spotlight’s brightness and use it only as needed to minimise its impact on the drone’s flight time.

What are the installation precautions for the DJI AL1 Spotlight?⌄

To ensure proper installation and optimal performance, follow these precautions:

1. Secure Installation: Tighten all screws during installation to ensure the spotlight is securely attached.

2. Activation and Updates: After installation, activate the spotlight through the App prompts and update all devices to the latest firmware.

What are the usage precautions for the combined functions of the DJI AL1 SpotLight and DJI AS1 Speaker?⌄

When using the speaker and spotlight together, please remove the adapter bracket at the bottom of the speaker, install the speaker onto the top interface of the spotlight, and tighten the screws.

What are the usage precautions for the DJI AL1 SpotLight?⌄

Please pay attention to the following when using the spotlight:

1. After installing the spotlight, the obstacle avoidance and power performance of the aircraft will be affected. When the spotlight is turned on, the obstacle avoidance function will deactivate automatically. Please pay attention to flight safety.

2. DO NOT point the spotlight directly at people’s eyes to avoid causing eye damage.

3. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.

How to use the wide fov mode of the DJI AL1 Spotlight?⌄

In the app's spotlight settings, turn on the wide fov mode to increase the illumination range and field of view. This feature is linked to the camera zoom ratio and is only effective with the wide-angle camera and 1X zoom.

How to Upgrade the Firmware of DJI AL1 Spotlight?⌄

Install the spotlight on the aircraft. When the aircraft firmware is upgraded, the spotlight will be upgraded simultaneously. There are three ways to upgrade the firmware:

1. Connect the aircraft to the computer and use the DA2 software to adjust parameters and upgrade.

2. Click on the firmware upgrade in the main interface of the App to upgrade directly.

3. When the system prompts for a consistency upgrade, click upgrade.
