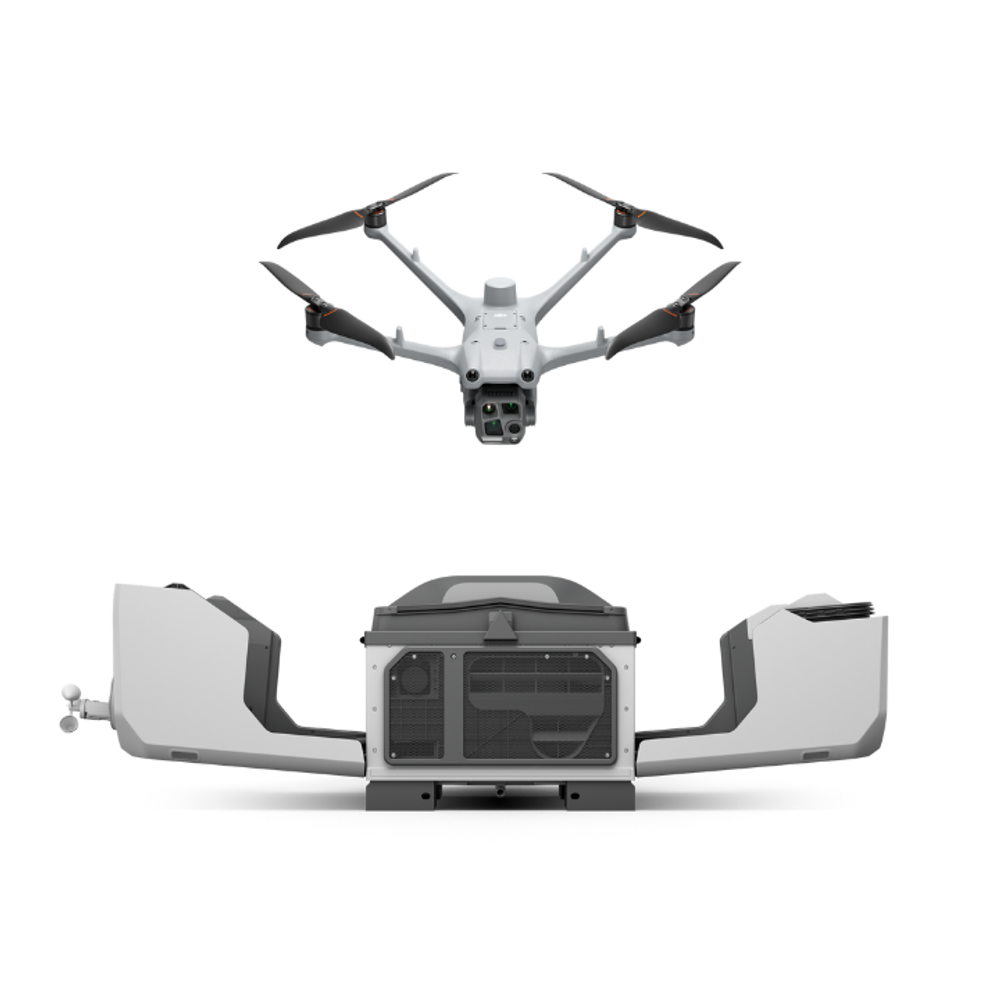

View 01 / 03DJI Dock 3 with DJI Matrice 4TD drone.
What you get in the box
01DJI Dock 3 x 1
02Grounding Wire x 1
03Wind speed gauge x 1
04Power plug x 1
05Network plug x 2
06Power cable terminals x 6
07Screwdriver x 1
08Dual-headed USB-C Cable x 1
09DJI Matrice 4TD Drone x 1
50-day return policy
  • Return within 50 days of purchase.
  • Full refund for unopened, sealed, unactivated items.
  • Opened products may still qualify if unused.
  • For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm
  • Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
  • UK Saturday delivery available on orders placed before 3pm Friday.
  • After 3pm Friday — dispatched Monday.
  • Some UK regions may need 2–3 working days.
Discounted options with main purchase
  • Bundle pricing on accessories, spares and training when bought together.
  • Reduced rates on add-ons selected at checkout.
  • Ask us for a tailored quote on multi-unit or fleet orders.
DJI · Enterprise · Dock 3 · Matrice 4TD thermal

DJI Dock 3 With DJI Matrice 4TD

The DJI Dock 3 with Matrice 4TD is an all-weather drone-in-a-box for autonomous thermal operations. The dock houses, charges and launches the M4TD with no one on site, managed remotely through DJI FlightHub 2.

Choose your combo
5+ in stock — UK warehouseNext-day if ordered before 3pm50-day returns
Add to your order
DJI Dock 3 With DJI Matrice 4TD · With DJI Matrice 4TD£16,795.00
Total today£16,795.00
Tax included in UKFree UK delivery
Pay with

heliguy support & optional extras

heliguy Essential SupportIncluded
Tech assistance, repairs liaison, account access
Free
heliguy Advanced SupportBespoke
SORA consultancy · priority repair · multi-pilot
POA
Will you need training?UK CAA · estimate
1.2 kgA2 · Open

Under 2 kg — an A2 CofC lets you fly as close as 30 m (or 5 m in low-speed mode) to uninvolved people.

Product dossier

DJI Dock 3 With DJI Matrice 4TD

Next-gen drone-in-a-box solution

DJI Dock 3 Key Features

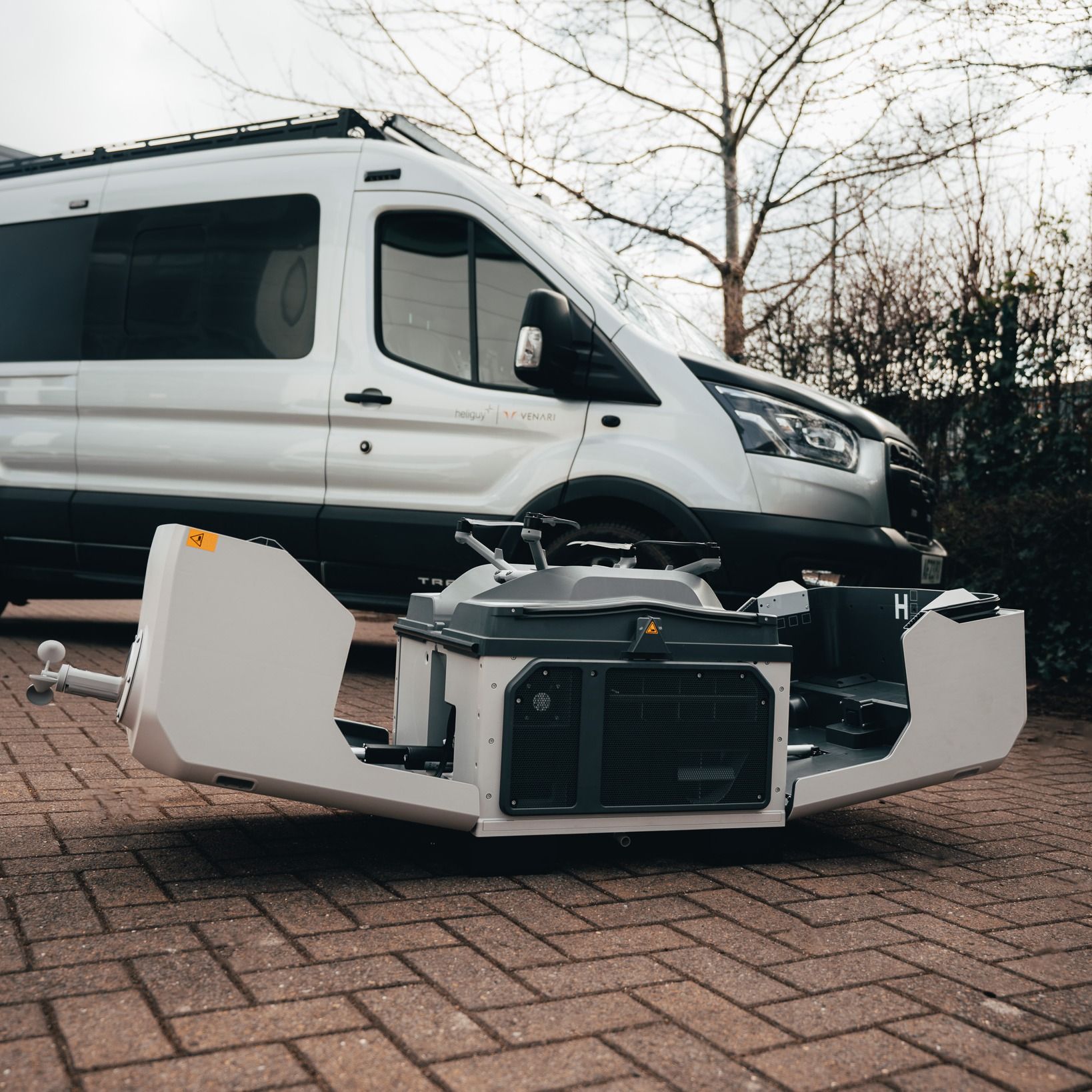

  • Supports vehicle-mounted deployments.

  • Designed for two docks to be deployed from a single vehicle for dual-drone rotations.

  • Meets the needs of public safety, emergency response, and infrastructure inspection.

  • Dock 3 handles temperatures from 50°C to -30°C and has an internal IP56-rated system.

  • Compatible with DJI M4D and M4TD - which are IP55-rated and have a flight time of 54 minutes.

  • M4TD's integrated payload has six modules for versatile data collection, including a thermal camera.

DJI Dock 3 Key Features

Full specifications

DJI Dock 3 With DJI Matrice 4TD
Dock Performance
Total Weight (without aircraft)55 kg
DimensionsCover opened: 1760 x 745 x 485 mm / / Cover closed: 640 x 745 x 770 mm / / All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm). / /
Input Voltage100-240 V (AC), 50/60 Hz
Input PowerMax 800 W
Operating Temperature-30°C to 50°C
Ingress Protection RatingIP56
Max Allowable Landing Wind Speed12 m/s / ~27 mph
Number of drones accommodated1
Max Operating Altitude4500 m
Positioning Accuracy of RTK Base StationHorizontal: 1 cm + 1 ppm (RMS) / Vertical: 2 cm + 1 ppm (RMS)
Output Voltage35 V DC
Charging Time27 minutes / / The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
Operating Frequency2.400-2.4835 GHz / 5.150-5.250 GHz (CE: 5.170-5.250 GHz) / 5.725-5.850 GHz
AntennaBuilt-in 9 antennas, 2T4R, supports intelligent switching
Transmitter Power (EIRP)2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) / 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE) / 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)
Operating Voltage48 V DC
Air Conditioning TypeCompressor-based air conditioning
Battery Capacity12 Ah
Output Voltage12 V
Battery TypeLead-acid battery
Battery Life> 4 hours / / Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
Ethernet Access10/100/1000Mbps adaptive Ethernet port
Wind Speed SensorSupported
Rainfall SensorSupported
Ambient Temperature SensorSupported
Water Immersion SensorSupported
In-Cabin Temperature SensorSupported
In-Cabin Humidity SensorSupported
Resolution1920 x 1080
Field of View (FOV)151°
Auxiliary LightAuxiliary White Light
AC Power Port20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements
Ethernet Port10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements
ApplicationsDJI Enterprise app (used with Android phones for deployment and commissioning)
Cloud PlatformFlightHub 2 / FlightHub 2 On-Premises Version / FlightHub 2 FlightHub Sync / DJI Cloud API
Edge ComputingSupports data communication with external switches
Weight1850 g / / This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors. /
Max Takeoff Weight2090 g
Dimensions377.7×416.2×212.5 mm (L×W×H, without propellers)
WheelbaseDiagonal Wheelbase: 498.5 mm / / Front Motor Left-Right Wheelbase: 383.0 mm / / Rear Motor Left-Right Wheelbase: 343.0 mm / / Front-Rear Wheelbase: 341.6 mm
Max Ascent Speed6 m/s (Normal Mode) / / 10 m/s (Sport mode)
Max Descent Speed6 m/s (Normal Mode) 8 m/s (Sport mode)
Max Horizontal Speed (at sea level, no wind)Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways. Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways / / When used with DJI Dock, only Normal mode is supported.
Max Wind Speed ResistanceDuring Operation: 12 m/s / / During Takeoff/Landing: 12 m/s
Max Takeoff Altitude6500 m
Max Hovering Time47 minutes / / Measured with the DJI Matrice 4D Series drones hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Operating Radius10km / / Measured in an environment of approximately 25° C (77° F) with a safe battery level of 15%, windless environment, round-trip flight speed of approximately 15 m/s, and hovering operation of 18 minutes. Results may vary depending on the environment, actual use, and firmware version.
Max Flight Distance43 km / / Measured with Matrice 4D/4TD flying at a constant speed of 16 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Pitch Angle25° (Normal Mode) / / 30° (Sport Mode)
Max Angular Velocity200°/s
Global Navigation Satellite SystemGPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)
Hovering Accuracy Range (windless or breezy)Vertical: / ±0.1 m (with vision positioning) / ±0.5 m (with GNSS positioning) / ±0.1 m (with RTK positioning) / / Horizontal: / ±0.3 m (with vision positioning) / ±0.5 m (with GNSS positioning) / ±0.1 m (with RTK positioning)
Operating Temperature-20° to 50° C (-4° to 122° F)
Ingress Protection RatingIP55
Motor Model2611
Propeller Model1364F foldable low-noise anti-ice propellers
RTK ModuleIntegrated on the aircraft
BeaconIntegrated on the aircraft
Motor Model2611
Image SensorDJI Matrice 4D / / Wide-Angle Camera: 4/3 CMOS, Effective Pixels: 20 MP / Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP / Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP / / DJI Matrice 4TD / / Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP / Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP / Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP
LensWide-Angle Camera / / DJI Matrice 4D / / FOV: 84° / Format Equivalent: 24 mm / Aperture: f/2.8-f/11 / Focus: 1 m to ∞ / / DJI Matrice 4TD / / FOV: 82° / Format Equivalent: 24 mm / Aperture: f/1.7 / Focus: 1 m to ∞ / / Medium Tele Camera / / FOV: 35° / Format Equivalent: 70 mm / Aperture: f/2.8 / Focus: 3 m to ∞ / / Tele Camera / / FOV: 15° / Format Equivalent: 168 mm / Aperture: f/2.8 / Focus: 3 m to ∞
Lens DefoggingDJI Matrice 4D and DJI Matrice 4TD: Wide-angle, medium tele, and tele cameras all support lens defogging
ISO RangeNormal Mode: ISO 100-25600 / / Night Scene Mode / / Matrice 4D / / Wide-Angle Camera: ISO 100-204800 / Medium Tele Camera: ISO 100-409600 / Tele camera: ISO 100-409600 / / Matrice 4TD / / Wide-Angle Camera: ISO 100-409600 / Medium Tele Camera: ISO 100-409600 / Tele Camera: ISO 100-819200
Shutter SpeedDJI Matrice 4D / / Wide-Angle Camera / / Electronic Shutter: 2-1/8000 s / Mechanical Shutter: 2-1/2000 s / / Medium Tele Camera / / 2-1/8000 s / / Tele Camera / 2-1/8000 s / / DJI Matrice 4TD / 2-1/8000 s
Max Image SizeDJI Matrice 4D / / Wide-Angle Camera: 5280×3956 / Medium Tele Camera: 8064×6048 / Tele Camera: 8192×6144 / / DJI Matrice 4TD / / Wide-Angle Camera: 8064×6048 / Medium Tele Camera: 8064×6048 / Tele Camera: 8192×6144
Minimum Photo IntervalDJI Matrice 4D: 0.5 s / / DJI Matrice 4TD: 0.7 s
Still Photography ModesDJI Matrice 4D / / Wide-Angle Camera / / Single: 20 MP / Timed: 20 MP / JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s / JPEG + RAW: 2/3/5/7/10/15/20/30/60 s / Smart Capture: 20 MP / Panorama: 20 MP (raw image); 100 MP (stitched image) / / Medium Tele Camera / / Single: 12 MP/48 MP / Timed: 12 MP/48 MP / JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Capture: 12 MP / / Tele Camera / / Single: 12 MP/48 MP / Timed: 12 MP/48 MP / JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Capture: 12 MP / / DJI Matrice 4TD / / Wide-Angle Camera / / Single: 12 MP/48 MP / Timed: 12 MP/48 MP / JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Capture: 12 MP / Panorama: 12 MP (raw image); 100 MP (stitched image) / / Medium Tele Camera / / Single: 12 MP/48 MP / Timed: 12 MP/48 MP / JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Capture: 12 MP / / Tele Camera / / Single: 12 MP/48 MP / Timed: 12 MP/48 MP / JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Capture:12MP
Video Codec and ResolutionDJI Matrice 4D and DJI Matrice 4TD / / Video Codec: H.264, H.265 / Encoding Strategy: CBR, VBR / Resolution: 4K: 3840 x 2160@30fps; FHD: 1920 x 1080@30fps
Video BitrateDJI Matrice 4D and DJI Matrice 4TD / / H264: 60 Mbps / H265: 40 Mbps
Supported File SystemDJI Matrice 4D / / Wide-Angle Camera: JPEG/DNG (RAW) / Medium Tele Camera: JPEG / Tele Camera: JPEG / / DJI Matrice 4TD: JPEG
Video FormatDJI Matrice 4D and DJI Matrice 4TD:MP4 (MPEG-4 AVC/H.264)
Digital ZoomTele Camera: 16x (112x hybrid zoom)
Infrared IlluminationDJI Matrice 4TD: FOV: 5.7°±0.3°
Laser RangefindingNormal Incidence Range: 1800 m (1 Hz) @20% reflectivity target* / Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) / Blind Zone: 1 m / Distance Measurement Accuracy: 1 m to 3 m: System Error <0.3 m, Random Error <0.1 m @1σ / Other Distances: ±(0.2+0.0015D) (Distance in meters) / * Performance degradation may occur in rainy or foggy conditions.
Thermal ImagerUncooled VOx Microbolometer / / DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned, leading to permanent damage.
Resolution640 x 512
Pixel Pitch12 μm
Frame Rate30 Hz
LensDFOV: 45° / Format Equivalent: 53 mm / Aperture: f/1.0 / Focus: 5 m to ∞
Sensitivity≤ 50 mk@F1.0
Temperature Measurement MethodSpot Measurement, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 320° F, High Gain Mode) / / 0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit) / R-JPEG (16-bit)
Video resolution1280×1024@30fps (UHR Infrared Image function enabled, Night Scene mode not enabled) / Other conditions: 640×512@30fps
Video Bitrate6.5Mbps (H.264 640×512@30fps) / 5Mbps (H.265 640×512@30fps) / 12Mbps (H.264 1280×1024@30fps) / 8Mbps (H.265 1280×1024@30fps)
Video FormatMP4
Still Photography ModesSingle / Normal Mode: 640×512 / UHR Infrared Image Mode: 1280×1024 / / Timed / Normal Mode: 640×512, 0.7/1/2/3/5/7/10/15/20/30/60 s / UHR Infrared Image Mode: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s
Digital Zoom28x
Infrared Wavelength8-14 μm
Infrared Temperature Measurement AccuracyHigh Gain: ±2℃ or ±2%, whichever is greater / Low Gain: ±5℃ or ±3%, whichever is greater
Stabilisation3-axis mechanical gimbal (tilt, roll, pan)
Mechanical RangeDJI Matrice 4D / / Tilt: -140° to +50° / Roll: -52° to +52° / Pan: -65° to +65° / / DJI Matrice 4TD / / Tilt: -140° to +113° / Roll: -52° to +52° / Pan: -65° to +65°
Controllable RangeDJI Matrice 4D / / Tilt: -90° to +35° / Pan: Not controllable / / DJI Matrice 4TD / / Tilt: -90° to +90°* / Pan: Not controllable /
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.005°
Infrared Sensing SystemPrecision Measurement Range: 0.1-8 m; FOV: 60° (front and back), 60° (left and right).
Sensing TypeOmnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5 m to 20 m / Detection Range: 0.5 m to 200 m / Effective Sensing Speed: Flight Speed ≤ 15 m/s / FOV: Horizontal 95°, Vertical 90°
BackwardMeasurement Range: 0.5 m to 20 m / Effective Sensing Speed: Flight Speed ≤ 12 m/s / FOV: Horizontal 95°, Vertical 90°
LateralMeasurement Range: 0.5 m to 16 m / Effective Sensing Speed: Flight Speed ≤10 m/s / FOV: Horizontal 90°, Vertical 90°
UpwardMeasurement Range: 0.5 m to 20 m / Effective Sensing Speed: Flight Speed ≤6 m/s / FOV:Front and Back 95°, Left and Right 90°
DownwardMeasurement Range: 0.5 m to 16 m / Effective Sensing Speed: Flight Speed ≤6 m/s / FOV: Front and Back 90°, Left and Right 95°
Operating EnvironmentForward, Backward, Upward and Downward: Surfaces with discernible patterns and adequate lighting (lux > 0.1) Left and Right: Diffuse reflective surface with diffuse reflectivity > 20% (e.g. walls, trees, people) and adequate lighting (lux > 6)
Video Transmission SystemDJI O4+ Enterprise
Live View Quality720p/30fps, 1080p/30fps (with DJI RC Plus 2 Enterprise) / 540p/30fps, 720p/30fps, 1080p/30fps (with DJI Dock 3 and DJI FlightHub 2)
Operating Frequency2.400-2.4835 GHz / 5.150-5.250 GHz (CE: 5.170-5.250 GHz) / 5.725-5.850 GHz / / The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.
Max Transmission Distance (unobstructed, free of interference)FCC: 25 km / CE: 12 km / SRRC: 12 km / MIC: 12 km / / Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in DJI FlightHub 2 or DJI Pilot 2 app during your flight.
Max Transmission Distance (unobstructed, with interference)Strong interference (dense buildings, residential areas, etc.): 1.5-5 km / Medium interference (suburban counties, city parks, etc.): 5-15 km / Weak interference (open spaces, remote areas, etc.): 15-25 km / / Data is tested under FCC standard in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. In obstructed environments, it is recommended to install the D-RTK 3 Relay Fixed Deployment Version.
Max Download Speed20 MB/s (with DJI Dock 3) / 20 MB/s (with DJI RC Plus 2 Enterprise) / / Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
Lowest LatencyThe video transmission latency from the aircraft to the dock is approximately 100 milliseconds (affected by the actual environmental conditions). / / The video transmission latency from the dock to DJI FlightHub 2 is affected by the actual network conditions and the computer's configuration.
Antenna8 antennas, 2T4R
Transmitter Power (EIRP)2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) / 5.1 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE) / 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
Supported Memory CardsAircraft: / U3/Class10/V30 or above is supported. A list of recommended microSD cards can be found below.
Recommended microSD CardsLexar 1066x 64GB U3 A2 V30 microSDXC / Lexar 1066x 128GB U3 A2 V30 microSDXC / Lexar 1066x 256GB U3 A2 V30 microSDXC / Lexar 1066x 512GB U3 A2 V30 microSDXC / Kingston Canvas Go! Plus 64GB U3 A2 V30 microSDXC / Kingston Canvas Go! Plus 128GB U3 A2 V30 microSDXC / Kingston Canvas Go! Plus 256GB U3 A2 V30 microSDXC / Kingston Canvas Go! Plus 512GB U3 A2 V30 microSDXC
Capacity6768 mAh
Voltage22.14 V
Max Charging Voltage25.5 V
Cell TypeLi-ion 6S
Chemical SystemLiNiMnCoO2
Energy149.9 Wh
Weight640 g
Cycle Count400
Charging Temperature5° to 45° C (41° to 113° F)
Discharge Rate4C
Max Charging Power1.8C
Low-Temperature ChargingSupports low-temperature self-heating charging

Watch it in action

Field footage
Smart Automation For Complex Drone Missions
DJI Dock 3: Boundary Test
DJI Dock 3 AI Detection

Manuals & documents

10 files

Frequently asked questions

What is the difference between DJI Dock 3 and DJI Dock 2?

DJI Dock 3 is an iterative upgrade of DJI Dock 2, with the following main upgrades compared to the previous generation:

1. IP rating upgraded to IP56.

2. Operating temperature range widened to -30° to 50° C (-22° to 122° F) .

3. Video transmission system upgraded to O4+ Enterprise.

4. Supports vehicle-mounted deployment.

5. With the D-RTK 3 Relay Fixed Deployment Version, site selection of DJI Dock 3 becomes more flexible.

6. Supports quick takeoff, ready to fly as soon as the cover is opened.

7. Lower live view latency for a smoother operation experience.

8. Improved cooling and heating performance of the air conditioner.

How many versions does the DJI Matrice 4D Series have? What are the differences between them?

The DJI Matrice 4D Series currently includes two versions - DJI Matrice 4D and DJI Matrice 4TD. Check out the table below to learn more about their key features.

FeatureDJI Matrice 4DDJI Matrice 4TD
Wide-angle Camera4/3 CMOS, 20MP1/1.3-inch CMOS, 48MP
Medium Tele Camera1/1.3-inch CMOS, 48MP1/1.3-inch CMOS, 48MP
Tele Camera1/1.5-inch CMOS, 48MP1/1.5-inch CMOS, 48MP
Infrared Thermal CameraNot includedIncluded
NIR Auxiliary LightNot includedIncluded
Laser Range FinderIncludedIncluded
Key CapabilitiesPowerful imagingThermal imaging and low-light performance
What is the IP rating of the DJI Matrice 4D Series drones?

The DJI Matrice 4D Series drones have an IP55 rating.

Do cameras on DJI Matrice 4D Series support mapping without GCPs?

Only the 4/3 CMOS wide-angle camera on DJI Matrice 4D supports mapping without GCPs.

What precautions should be taken when using the infrared thermal camera of DJI Matrice 4TD?

DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.

What is the difference between the DJI Matrice 4D Series and the Matrice 4 Series?

The DJI Matrice 4D Series has the following main differences compared to the Matrice 4 Series:

1. Supports IP55 protection rating.

2. Maximum flight time of 54 minutes.

3. Supports greater payload capacity.

4. Supports airborne relay, where one drone can fly high as a relay, addressing signal issues in mountainous terrains.

5. Arms of Matrice 4D Series drones are not foldable.

Why can the arms of the DJI Matrice 4D series be moved, and why are there visible gaps at the base of the arms?

The DJI Matrice 4D Series drones incorporate rotational dampers at the base of each arm to dampen arm vibration, ensuring reliable, long-time flight in various environments. The arms can rotate at a small angle, and visible gaps at the base of the arms are normal design characteristics.

Why are the propeller tips of the DJI Matrice 4D Series drones curved?

To provide better noise reduction.

What precautions should be taken when using the anti-ice propellers of the DJI Matrice 4D Series drones?

The anti-icing effectiveness of the propellers decreases with usage over time. Please replace the propellers at least every 12 months or after 500 flight hours. Do not scratch the surface of the propellers or touch them directly with your fingers. Do not use oil-based or alcohol-based solvents to wipe the propellers, as this may damage the anti-icing layer on the surface. Each set of propellers is dynamically balanced. When replacing propellers, please use the propellers from the same package and do not mix them with propellers from other packages. If the propellers become deformed or damaged during use, they need to be replaced promptly. When replacing propellers, be sure to simultaneously replace the corresponding washers and screws. Do not reuse them.

Common questions

From the heliguy knowledge base
All knowledge base answers
