DJI · Goggles

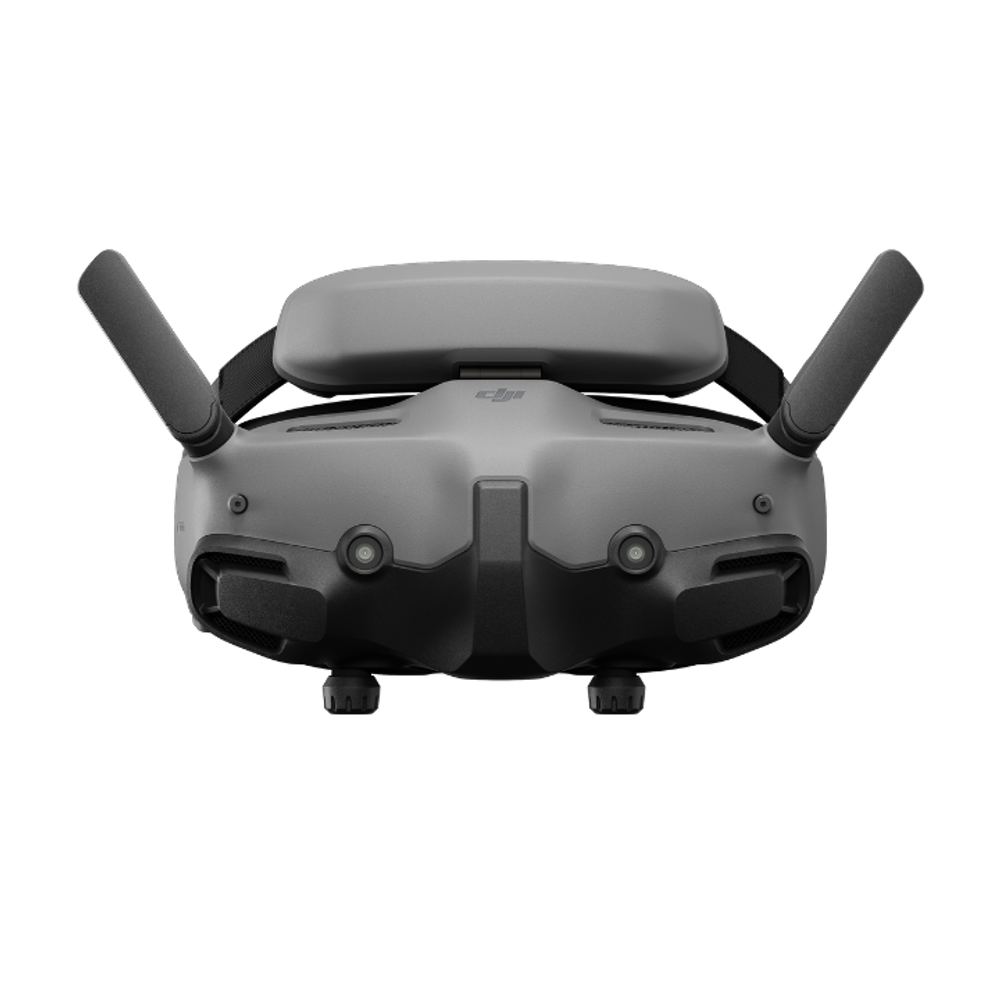

DJI Goggles 3

SKU CP.FP.00000159.01

DJI Goggles 3 for the DJI Avata 2. Featuring real-view PIP, next-gen 04 HD video transmission, and enhanced comfort.

3 in stock — UK warehouseNext-day if ordered before 3pm50-day returns
DJI Goggles 3£579.00
Total today£579.00
Tax included in UKFree UK delivery
Pay with

Product dossier

DJI Goggles 3

Immersive FPV Experience

DJI Goggles 3 Key Features

  • Real View PiP

    : Toggle the display between the interactive interface and the live view of the real-world environment while the real-time flight footage remains consistently displayed in the upper left corner of the screen.

  • Next-Gen 04 HD Video Transmission:

    Transmission latency as low as 24 ms, automatically selects between the 2.4 GHz or 5.8 GHz band, and a maximum video transmission rate of 60Mbps.

  • Enhanced Comfort:

    Low-pressure padding, one-tap defogging, battery and headband integration, and diopter adjustment from -6.0 D to +2.0 D. Visual Performance: 1920 x 1080 screen resolution, 100 Hz max screen refresh rate, 700 nits max screen brightness.

  • Wide Compatibility:

    Compatible with DJI Air 3, DJI Mini 4 Pro, DJI Avata 2, DJI Neo 2, DJI Neo, DJI O4 Air Unit Series, and DJI O3 Air Unit. You can control the drones using DJI RC Motion 3, DJI FPV Remote Controller 3, DJI RC 2, and DJI RC-N2 remote controllers.

Full specifications

DJI Goggles 3
Specifications
ModelTKGS3
WeightApprox. 470 g (battery included)
Dimensions (L×W×H)With antennas folded: 170×109×112 mm / With antennas unfolded: 205×109×112 mm
Screen Size (single screen)0.49 inch
Resolution (single screen)1920×1080
Refresh RateUp to 100 Hz
Interpupillary Distance Range56-72 mm
Diopter Adjustment Range-6.0 D to +2.0 D
FOV (single screen)44°
Video Recording FormatMOV
Supported Video and Audio Playback FormatsMP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM) / Panoramic Video: Spherical 2D panoramic videos. / 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU). / Max Video Specification: 4K/60fps
Real View FOV44°
Operating Temperature-10°C to 40°C (14°F to 104°F)
Power InputBuilt-in battery
Supported SD CardsmicroSD (up to 512 GB)
Recommended microSD CardsKingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC / Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC / Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC / Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC / Lexar Professional 1066x 64GB U3 A2 V30 microSDXC / Lexar Professional 1066x 128GB U3 A2 V30 microSDXC / Lexar Professional 1066x 256GB U3 A2 V30 microSDXC / Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
Video TransmissionWhen used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft. / With DJI Avata 2: DJI O4
Operating Frequency2.4000-2.4835 GHz / 5.150-5.250 GHz / 5.725-5.850 GHz / Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.
Transmitter Power (EIRP)2.4 GHz: / < 33 dBm (FCC) / < 20 dBm (CE/SRRC/MIC) / 5.1 GHz: / < 23 dBm (CE) / 5.8 GHz: / < 33 dBm (FCC) / < 30 dBm (SRRC) / < 14 dBm (CE)
LatencyWith DJI Avata 2: / 1080p/100fps video transmission quality: latency down to 24 ms / 1080p/60fps video transmission quality: latency down to 40 ms / Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
Max Transmission DistanceWhen used with DJI Avata 2, DJI Goggles 3 can achieve the following max video transmission distance: / 13 km (FCC); 10 km (CE/SRRC/MIC)
Max Video Bitrate60 Mbps / Measured in an outdoor open environment without interference. Actual data varies with the operating environment.
Wi-Fi Protocol802.11 a/b/g/n/ac
Wi-Fi Operating Frequency2.4000-2.4835 GHz / 5.170-5.250 GHz / 5.725-5.850 GHz / Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.
Wi-Fi Transmitter Power (EIRP)2.4 GHz: / < 20 dBm (FCC/CE/SRRC/MIC) / 5.1 GHz: / < 20 dBm (FCC/CE/MIC) / 5.8 GHz: / < 20 dBm (FCC/SRRC) / < 14 dBm (CE)
Bluetooth ProtocolBluetooth 5.0
Bluetooth Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)< 10 dBm
GFSK Operating Frequency2.4000-2.4835 GHz
GFSK Transmitter Power (EIRP)< 26 dBm (FCC) / < 20 dBm (CE/SRRC/MIC)
Battery Dimensions121×65×52.5 mm (L×W×H)
Battery Capacity3000 mAh
Battery Voltage5.6-8.4 V
Battery CategoryLi-ion
Battery Chemical SystemLiNiMnCoO2
Battery Energy21.6 Wh
Battery Charging Temperature0°C to 50°C (32°F to 122°F)
Max Charging Power20 W (charging when powered off)
Battery RuntimeApprox. 3 hours / The 3-hour max operating time was measured at an ambient temperature of 25°C (77°F), screen brightness at 4, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, Real View off, and the battery of the goggles fully charged and not supplying power to external devices such as smartphones.

Manuals & documents

5 files
DJI Goggles 3: Release NotesPDF · 47 KBDJI Goggles 3: User ManualPDF · 15.6 MBDJI Goggles 3: Quick Start GuidePDF · 4.5 MBDJI Goggles 3: Consumuer Drones and Goggles Compatibility Information PDF · 292 KBEU Declaration of Conformity for DJI Goggles 3PDF · 1.2 MB

Frequently asked questions

What are the differences between DJI Goggles 2, DJI Goggles Integra, and DJI Goggles 3? What improvements have been made to DJI Goggles 3?⌄

The differences include:

• DJI Goggles 3 and DJI Goggles 2 are similar in size and screen display performance. However, Goggles 3 exhibits significant enhancements in video transmission.

• When paired with Avata 2, they can achieve a minimum transmission latency of 24 milliseconds.

• Compared to DJI Goggles 2 and DJI Goggles Integra, DJI Goggles 3 innovates with an integrated forehead pad design, offering superior comfort. The new Real View PiP feature enhances safety during takeoff and landing.

How do I use DJI Goggles 3 with astigmatism, nearsightedness, or farsightedness?⌄

The DJI Goggles 3 has a built-in diopter adjustment function, which is convenient for users from -6.0 D to +2.0 D diopters. For those outside this range, you can combine the included -2.0 D lenses and frames.

If you require astigmatism correction, or if the built-in adjustment provided lenses are unsuitable, you can purchase additional lenses from an optician and fit them to the goggles.

Does DJI Goggles 3 support interpupillary distance adjustment?⌄

Yes, the adjustment range is 56-72 mm.

Can I replace the foam padding of DJI Goggles 3? ⌄

Yes. The foam padding can be detached and replaced.

Can DJI Goggles 3 be charged by third-party power sources?⌄

Yes. Since DJI Goggles 3 has a built-in battery, you can connect it to a power bank through the USB-C port and even use it while charging.
