View 01 / 06DJI Goggles Integra
What you get in the box
01DJI Goggles Integra x 1
02USB-C OTG Cable x 1
03DJI Goggles Integra Eyeglass Frames (Pair) x 2
04DJI Goggles Integra Corrective Lenses (Pair) x 11
05DJI Goggles Integra Top Headband x 1
06Lens Cleaning Cloth x 1
50-day return policy⌄
  • Return within 50 days of purchase.
  • Full refund for unopened, sealed, unactivated items.
  • Opened products may still qualify if unused.
  • For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm⌄
  • Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
  • UK Saturday delivery available on orders placed before 3pm Friday.
  • After 3pm Friday — dispatched Monday.
  • Some UK regions may need 2–3 working days.
Discounted options with main purchase⌄
  • Bundle pricing on accessories, spares and training when bought together.
  • Reduced rates on add-ons selected at checkout.
  • Ask us for a tailored quote on multi-unit or fleet orders.
DJI · Goggles

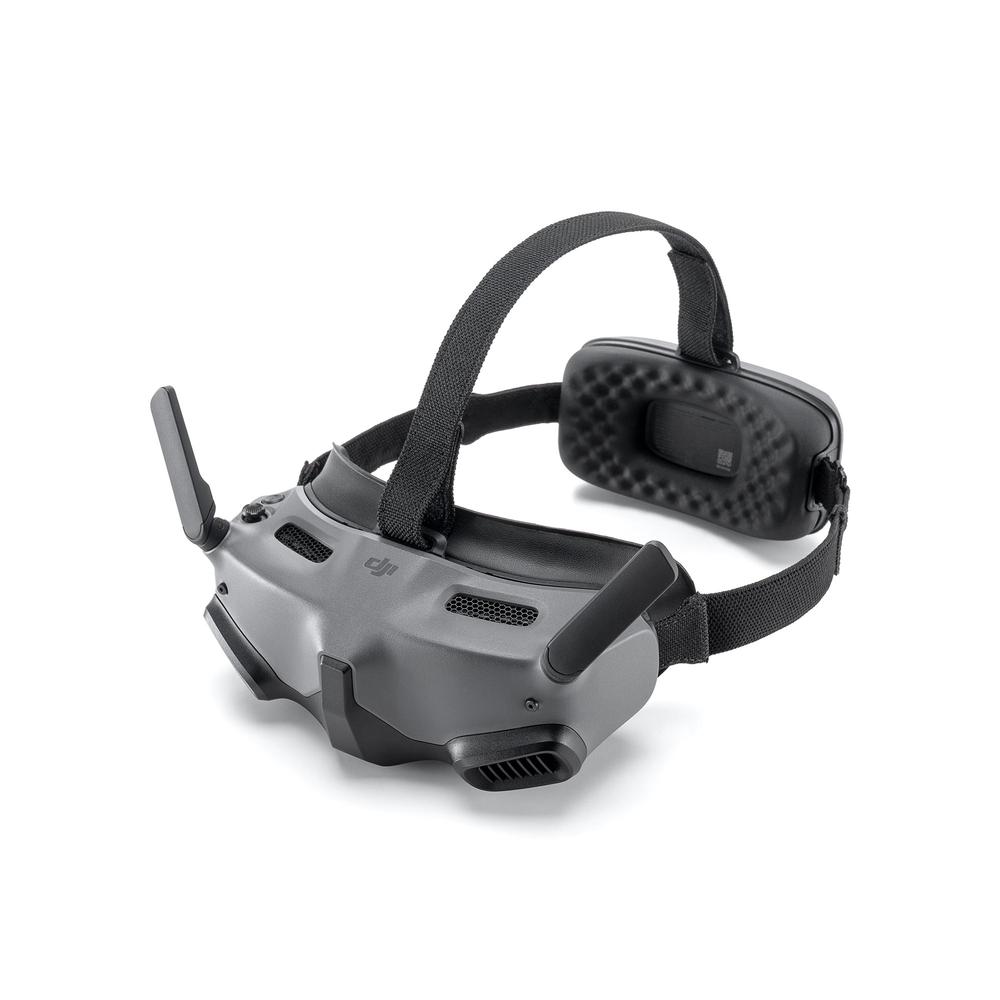

DJI Goggles Integra

SKU CP.FP.00000113.03

The Goggles Integra have dual 1080p micro-OLED screens, 100Hz refresh, & low latency. Use with Avata, Mavic 3, Air 3, Mini 4 Pro & more.

3 in stock — UK warehouseNext-day if ordered before 3pm50-day returns
DJI Goggles Integra£579.00
Total today£579.00
Tax included in UKFree UK delivery
Pay with

Product dossier

DJI Goggles Integra

Experience immersive, first-person flight

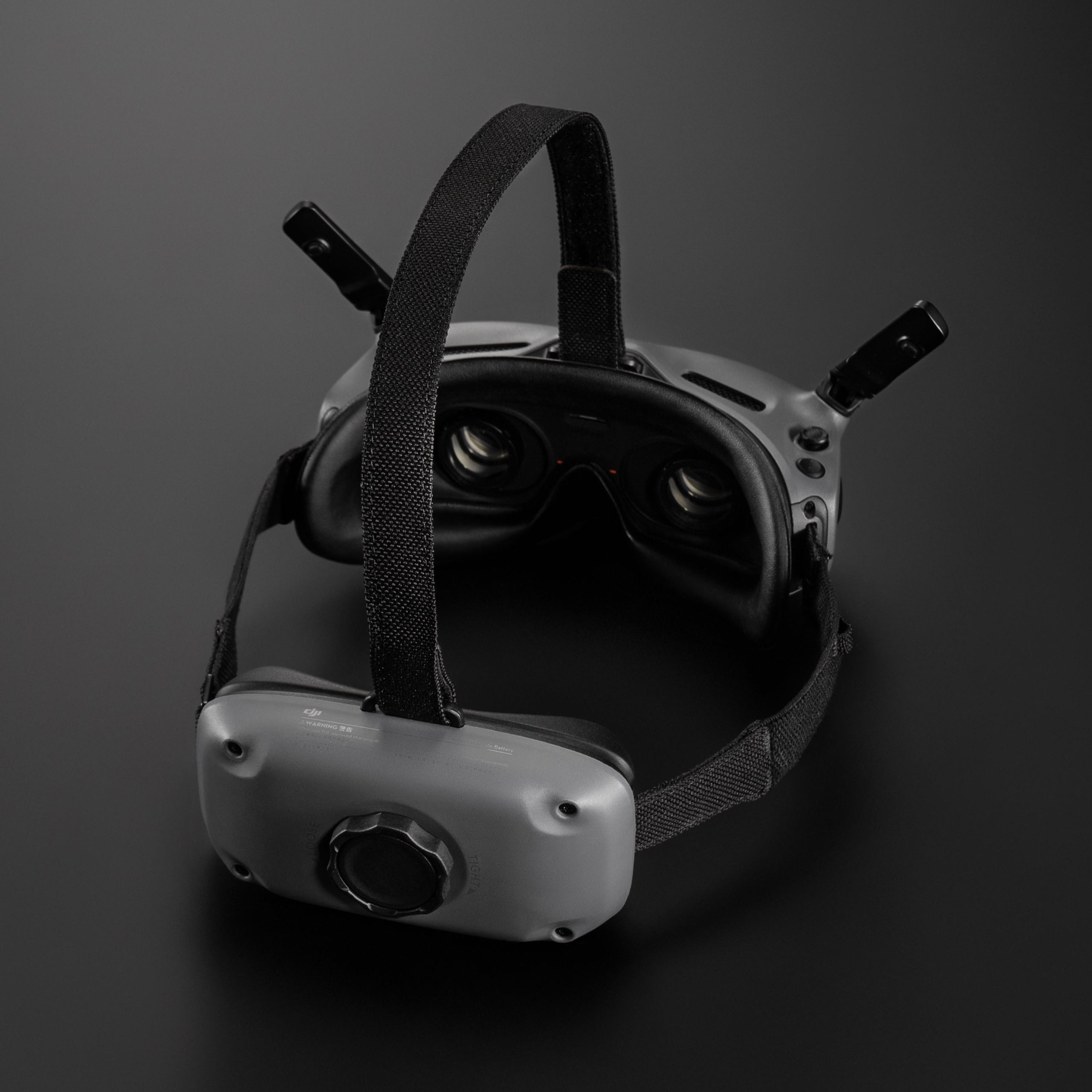

DJI Goggles Integra Key Features

  • Convenient Goggles:

    These goggles weigh 410g and combine the headband and battery into one, removing cabling.

  • Long Run Time:

    Enjoy up to two hours of battery life.

  • HD Display:

    Goggles Integra has two 1080p Micro-OLED screens, delivering true-to-life colours and highlight-shadow details. Enjoy a screen brightness of up to 700 nits and a refresh rate of up to 100 Hz.

  • Easy On The Eyes:

    These goggles are TÜV Rheinland Low Blue Light Certified.

  • Low Latency:

    DJI O3+ video transmisson enables stable video transmission and latency as low as 30ms.

  • Share Your View:

    Connect to the DJI Fly app and display a real-time camera view to your goggles and smartphone so you can share your view.

DJI Goggles Integra Key Features

Full specifications

DJI Goggles Integra
Specifications
Dimensions (L×W×H)With antennas folded:170×104×74.44 mm / With antennas unfolded: 205×104×104 mm
Screen Size (single screen)0.49-inch
Resolution (single screen)1920×1080
Refresh RateUp to 100 Hz
IPD Range56-72 mm
FOV (single screen)44°
Video Recording FormatMOV
Supported Video Playback FormatsMP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature-10° to 40° C (14° to 104° F)
Power InputBuilt-in battery
Supported SD CardsmicroSD (up to 512 GB)
Recommended microSD CardsSanDisk Extreme U3 V30 A1 32GB microSDXC / SanDisk Extreme Pro U3 V30 A1 32GB microSDXC / Lexar 1066x U3 V30 A2 64GB microSDXC / Lexar 1066x U3 V30 A2 128GB microSDXC / Lexar 1066x U3 V30 A2 256GB microSDXC / Lexar 1066x U3 V30 A2 512GB microSDXC / Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC / Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC / Kingston Canvas React Plus U3 V90 A1 64GB microSDXC / Kingston Canvas React Plus U3 V90 A1 128GB microSDXC / Kingston Canvas React Plus U3 V90 A1 256GB microSDXC / Samsung EVO Plus U3 V30 A2 512GB microSDXC
Video Transmission
Video TransmissionDJI Avata: O3+ / When used with different aircrafts, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
Operating Frequency2.4000-2.4835 GHz / 5.725-5.850 GHz / The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
Transmitter Power (EIRP)2.4000-2.4835 GHz: / < 30 dBm (FCC) / < 20 dBm (CE/SRRC/MIC/KC) / 5.725-5.850 GHz: / < 30 dBm (FCC) / < 23 dBm (SRRC) / < 14 dBm (CE/KC)
Transmission Latency1080p/100fps: as low as 30 ms / / 1080p/60fps: as low as 40 ms / / Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
Max Transmission DistanceWhen used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft. / / DJI Avata: / 12 km (FCC) / 6 km (CE/SRRC/MIC) / / DJI O3 Air Unit: / 10 km (FCC) / 2 km (CE) / 6 km (SRRC) / / Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Max Video Bitrate50 Mbps / / Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Battery
WeightApprox. 185 g (headband included)
Dimensions (L×W×H)120×48.8×71 mm
Capacity2450 mAh
Voltage5.6-8.4 V
TypeLi-ion
Chemical SystemLiNiMnCoO2
Energy17.64 Wh
Charging Temperature5° to 45° C (41° to 113° F)
Max Charging Power15 W (charging when powered off)
Operating TimeApprox. 2 hours / / Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.

Manuals & documents

5 files
DJI Goggles Integra Release NotesPDF · 114 KBDJI Goggles Integra User ManualPDF · 25.8 MBDJI Goggles Integra Safety GuidelinesPDF · 2.7 MBConsumer Drones and Goggles Compatibility Information PDF · 289 KBEU Declaration of Conformity for DJI Goggles Integra Motion ComboPDF · 858 KB

Frequently asked questions

Does DJI Goggles Integra support video playback?⌄

DJI Goggles Integra supports video playback through memory cards.

Supported video formats in memory cards: MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM).

Please note that Goggles Integra does not support 3D video playback.

Does DJI Goggles Integra support video recording with a memory card installed? What is the resolution and frame rate?⌄

Yes. DJI Goggles Integra can record its screens during the flight (and can include OSD and other information). The resolution is 1920×1080, and the frame rate is 60/50fps.

Does DJI Goggles Integra support motion control and head tracking?⌄

Yes, but a DJI RC Motion 2 or DJI Motion Controller is required.

What are the differences between DJI Goggles Integra and DJI Goggles 2? Compared with DJI FPV Goggles V2, what upgrades does DJI Goggles Integra have?⌄

Differences:

DJI Goggles Integra and DJI Goggles 2 are similar in size, video transmission performance, and screen display.

Compared with DJI Goggles 2, DJI Goggles Integra adds an integrated battery headband, making it more convenient to wear, and the touch panel has been replaced with physical buttons.

Additionally, the wireless streaming function, dot matrix display, speaker, 3.5mm audio port, and diopter adjustment function have been removed (the included corrective lenses can be used to achieve the same effect).

Upgrades:

1. DJI Goggles Integra has more comprehensive features and stronger compatibility. It supports the head tracking function, which allows you to experience immersive flight more freely.

2. DJI Goggles Integra adopts DJI's flagship O3+ video transmission, which can achieve full HD and low-latency video transmission.

3. DJI Goggles Integra features improved visual experience, wearing comfort, size, weight, and UI interaction.

Which products can be used with DJI Goggles Integra?⌄

DJI Goggles Integra is compatible with the following products:

• DJI Avata

• DJI O3 Air Unit

• DJI Motion Controller

• DJI RC Motion 2

• DJI FPV Remote Controller 2

• DJI FPV Air Unit Module

• DJI Mavic 3 Classic

• DJI Mavic 3

• DJI Mavic 3 Cine

• DJI Mavic 3 Pro

• DJI Mavic 3 Pro Cine

• DJI Air 3

• DJI Mini 4 Pro

• DJI Mini 3 Pro

• DJI FPV

Does DJI Goggles Integra support interpupillary distance adjustment?⌄

Yes, the adjustment range is 56-72 mm.
