Supported · no longer sold new

Production has ended, but this platform is fully supported at heliguy — spares, rental, DJI-authorised service and training. Looking to buy new? See the DJI Matrice 4 Series below.

View 01 / 03DJI Mavic 3 Thermal Advanced.

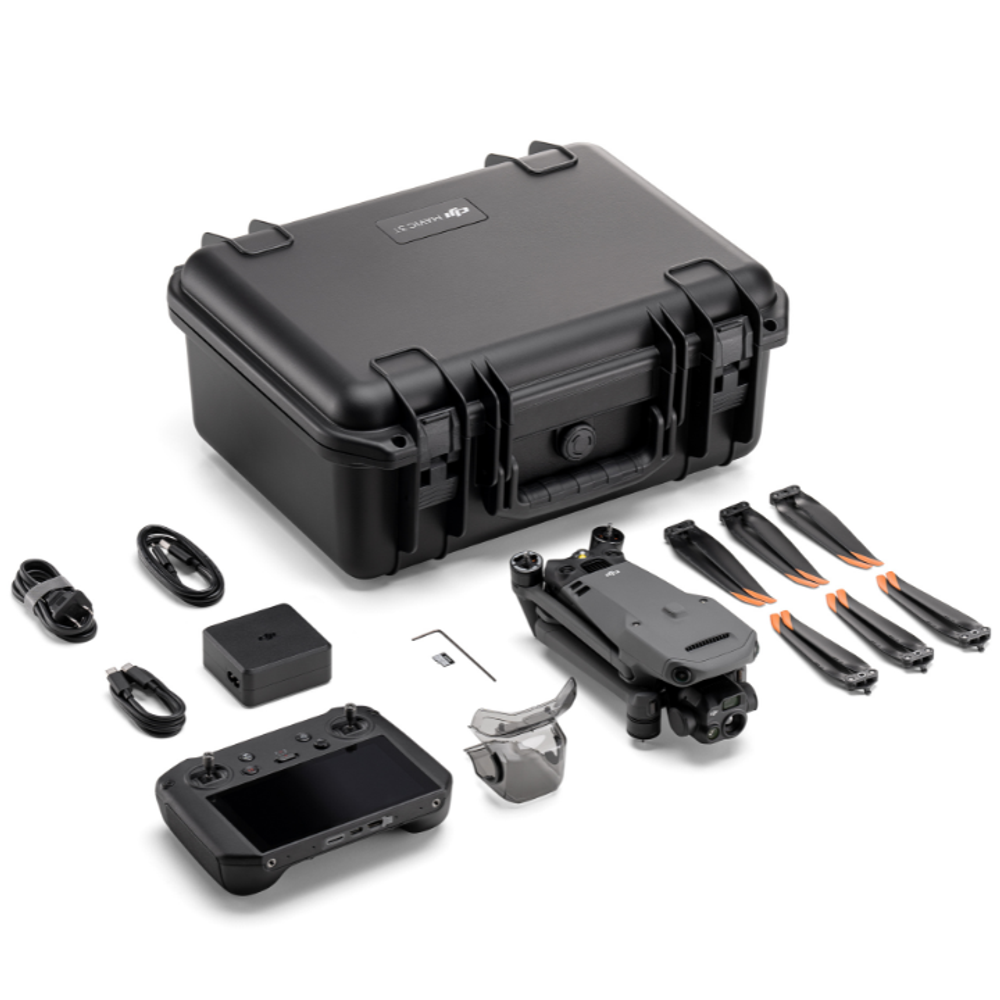

What you get in the box
01Mavic 3 Thermal Advanced x 1
02Flight Battery x 1
03microSD card 64GB x 1
04Gimbal cover x 1
05Mavic 3 Enterprise Series Propellers (Pair) x 3
06DJI RC Pro Enterprise x 1
07USB-C Power Adapter (100W) x 1
08100W Power Adaptor AC Cable x 1
09USB-C Cable x 1
10USB-C to USB-C Cable x 1
11Protector Case x 1
50-day return policy⌄
  • Return within 50 days of purchase.
  • Full refund for unopened, sealed, unactivated items.
  • Opened products may still qualify if unused.
  • For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm⌄
  • Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
  • UK Saturday delivery available on orders placed before 3pm Friday.
  • After 3pm Friday — dispatched Monday.
  • Some UK regions may need 2–3 working days.
Discounted options with main purchase⌄
  • Bundle pricing on accessories, spares and training when bought together.
  • Reduced rates on add-ons selected at checkout.
  • Ask us for a tailored quote on multi-unit or fleet orders.

Still supported here

sparesSpares & accessoriesBatteries, props and payloads — in stockrentalRental fleetHire the platform by the weekserviceDJI-authorised service & repairUK workshoptrainingType conversion & onboardingGet your team current on the Matrice 4 Seriesapproved-usedApproved usedCertified pre-owned come up periodically — check availability
Buying new?

Succeeded by DJI Matrice 4 Series

View the DJI Matrice 4 SeriesTalk to a specialist

Product dossier

DJI Mavic 3 Thermal Advanced

Versatile and portable thermal drone

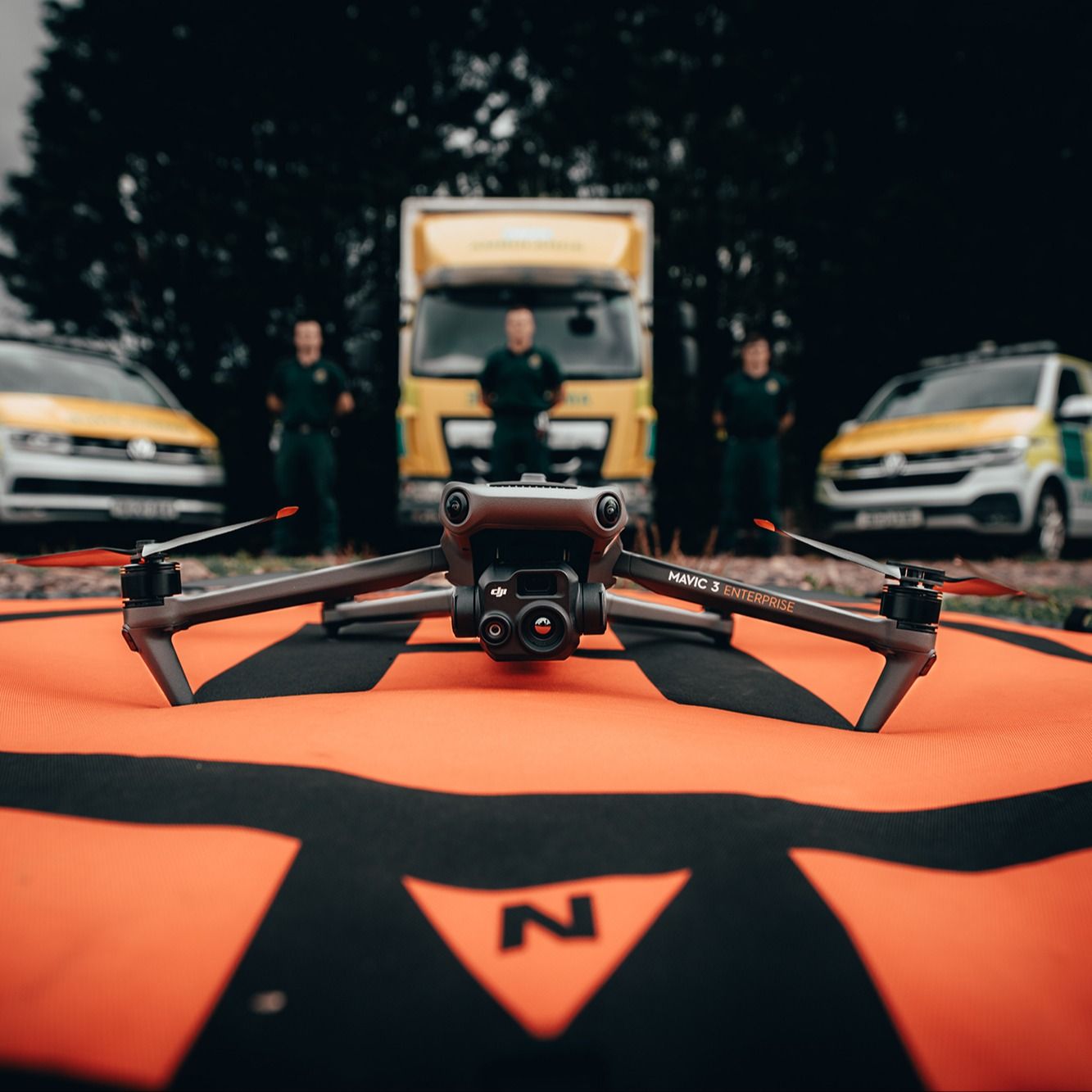

DJI Mavic 3 Thermal Advanced: Key features

  • Versatile data collection - Thermal, wide, and hybrid zooming.

  • 48MP wide camera.

  • 12MP tele camera with 56x hybrid zoom.

  • Thermal sensor - 640 x 512 @ 30Hz. Use with DJI Thermal Analysis Tool.

  • Enhanced thermal sensor, compared to DJI Mavic 3 Thermal.

  • Lightweight, compact, and portable: 920g airframe.

DJI Mavic 3 Thermal Advanced: Key features

Full specifications

DJI Mavic 3 Thermal Advanced
Aircraft
WeightWith propellers, without accessories / 920 g
Max Takeoff Weight1,050 g
Max Payload130 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H) / Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm
Max Ascent Speed6 m/s (Normal Mode) / 8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode) / 6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode) / Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) / *Maximum speed in Sport mode is 19m/s when operating in EU regions.
Max Wind Speed Resistance12 m/s / *Max wind speed resistance during takeoff and landing.
Max Take-off Altitude Above Sea Level6000 m (without payload)
Flight TimeMax 45 mins / / *Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.
Max Hover Time (no wind)38 mins
Max Distance32 km
Max Tilt Angle30° (Normal Mode) / 35° (Sport Mode)
Max Angular Velocity200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK); / Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Internal StorageN/A
Motor Model2008
Propeller Model9453F Propellers for Enterprise
BeaconBuilt into the aircraft
Wide Camera
Sensor1/2-inch CMOS, Effective pixels: 48 MP
LensFOV: 84° / Format Equivalent: 24 mm / Aperture: f/2.8 / Focus: 1 m to ∞
ISO RangeDJI Mavic 3T: 100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s /
Max Image Size8000 x 6000
Still Photography ModesSingle: 12 MP/48 MP / Timed: 12 MP/48 MP / JPEG: 2/3/5/7/10/15/20/30/60 s* / Panorama: 12 MP (raw image); 100 MP (stitched image) / Smart Low-light Shooting: 12 MP / / * Shooting 48MP photo does not support 2s interval
Video ResolutionH.264 / 4K: 3840×2160@30fps / FHD: 1920×1080@30fps
Bitrate4K: 85 Mbps / FHD: 30 Mbps
Supported File FormatsexFAT
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Tele Camera
Sensor1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15° / Format Equivalent: 162 mm / Aperture: f/4.4 / Focus: 3 m to ∞
ISO Range100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Max Image Size4000 x 3000
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesSingle: 12 MP / Timed: 12 MP / JPEG: 2/3/5/7/10/15/20/30/60 s / Smart Low-light Shooting: 12 MP
Video ResolutionH.264 / 4K: 3840×2160@30fps / FHD: 1920×1080@30fps
Bitrate4K: 85 Mbps / FHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)
Thermal Camera
Thermal ImagerUncooled VOx Microbolometer
Pixel Pitch8 μm
Frame Rate30Hz
LensDFOV: 41.2° / Format Equivalent: 60 mm / Aperture: f/1.0 / Focus: 5 m to ∞
Sensitivity≤50 mk@F1.1
Temperature Measurement MethodSpot Meter, Area Measurement
Temperature Measurement Range-20° to 150° C (-4° to 302° F, High Gain Mode) / 0° to 500° C (32° to 932° F, Low Gain Mode)
PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo FormatJPEG (8-bit) / R-JPEG (16-bit)
Video Resolution640 x 512@30fps
Bitrate6 Mbps
Video FormatMP4 (MPEG-4 AVC/H.264)
Still Photography ModesSingle: 640×512 / Timed: 640×512 / JPEG: 2/3/5/7/10/15/20/30/60 s
iFOV0.88 mrad
Infrared Wavelength8-14 μm
Infrared Temperature Measurement Accuracy±2° C or ±2% (using the larger value)
Gimbal
Stabilisation3-axis (tilt, roll, pan)
Mechanical RangeTilt: -135° to 45° / Roll: -45° to 45° / Pan: -27° to 27°
Controllable RangeTilt: -90° to 35° / Pan: Not controllable
Max Control Speed (tilt)100°/s
Angular Vibration Range±0.007°
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 m / Detection Range: 0.5-200 m / Effective Sensing Speed: Flight Speed ≤15 m/s / FOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 m / Effective Sensing Speed: Flight Speed ≤12 m/s / FOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 m / Effective Sensing Speed: Flight Speed ≤15 m/s / FOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 m / Effective Sensing Speed: Flight Speed ≤6 m/s / FOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 m / Effective Sensing Speed: Flight Speed ≤6 m/s / FOV: Front and Back 130°, Left and Right 160°
Operating Environment
Video Transmission SystemDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fps
Operating Frequency2.400–2.4835 GHz / 5.725–5.850 GHz
Max Transmission Distance (unobstructed, free of interference)FCC: 15 km / CE/SRRC/MIC: 8 km
Max Transmission Distance (obstructed)Strong Interference (urban): 1.5–3 km / Medium Interference (suburban): 3–9 km (FCC), 3–6 km (CE/SRRC/MIC) / Low Interference (open): 9–15 km (FCC), 6–8 km (CE/SRRC/MIC)
Max Download Speed15 MB/s (with DJI RC Pro Enterprise)
LatencyApprox. 200 ms
Antenna4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) / 5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Supported Memory CardsAircraft: / U3/Class10/V30 or above is required. A list of recommended microSD cards is provided below.
Recommended microSD Cards
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)

Frequently asked questions

What is the difference between the thermal sensor on the DJI Mavic 3 Thermal Advanced and Mavic 3 Thermal?⌄

The DJI Mavic 3 Thermal Advanced features a superior thermal camera, providing enhanced infrared imaging.

When at the same 640 x 512 resolution, the M3TA offers more accurate temperature measurements, clearer views at the same distance, and greater range at the same clarity.

Thermal cameraM3TAM3T
Pixel pitch8µm12µm
DFOV41.2°61°
35mm equivalent focal length60mm40mm
iFOV0.88 mrad1.29 mrad
How many versions of the DJI Mavic 3 Thermal Advanced are there?⌄

There are two versions of the DJI Mavic 3 Thermal Advanced. DJI Mavic 3 Thermal Advanced (Universal Edition): Normal battery and propellers, not C1 or C2 class-marked. DJI Mavic 3 Thermal Advanced EU-C1 version: C1 version of battery + low-noise propellers. Sub 900g and is C1 class-marked. The key differences are outlined below: DJI Mavic 3 Thermal Advanced DJI Mavic 3 Thermal Advanced EU-C1 Weight 920g 870g Max take-off weight 1,050g 899g Max flight time 45 mins 36 mins Battery DJI Mavic 3 Series Intelligent Flight Battery DJI Mavic 3 Enterprise Series Battery (EU C1 Version) Propellers DJI Mavic 3 Enterprise Series Propellers DJI Mavic 3 Enterprise Series Low-Noise Propellers Class mark None C1 For Open Category operations in the UK, currently, both the Mavic 3 Thermal Advanced and the Mavic 3 Thermal Advanced EU-C1 can be flown in the A2 subcategory (close to people) with an A2 CofC, or in the A3 subcategory (far from people) without an A2 CofC. However, from the start of 2026, when the UK CAA recognises EU class markings, the Mavic 3 Enterprise EU-C1 can be flown in the Open Category's A1 subcategory, conducting flights over people: Thus giving operators more freedom. Please note: A Mavic 3 Enterprise Series drone without a C1 mark cannot be considered C1-compliant if used with an EU-C1 version battery.

DJI Mavic 3 Thermal AdvancedDJI Mavic 3 Thermal Advanced EU-C1
Weight920g870g
Max take-off weight1,050g899g
Max flight time45 mins36 mins
BatteryDJI Mavic 3 Series Intelligent Flight BatteryDJI Mavic 3 Enterprise Series Battery (EU C1 Version)
PropellersDJI Mavic 3 Enterprise Series PropellersDJI Mavic 3 Enterprise Series Low-Noise Propellers
Class markNoneC1
Does the DJI Mavic 3 Thermal Advanced have European C1 certification?⌄

Yes, the DJI Mavic 3 Thermal Advanced EU-C1 version comes with C1 certification. To ensure C1 compliance, please use the EU-C1 version of the Intelligent Flight Battery and Low-noise propellers.

The thermal pixel pitch of M3TA is reduced compared with M3T. How does this impact data quality?⌄

The DJI Mavic 3 Thermal Advanced has better spatial resolution (smaller iFOV), which allows the thermal camera to obtain better details at the same distance.
