View 01 / 08DJI Ronin 4D-8K Camera Combo

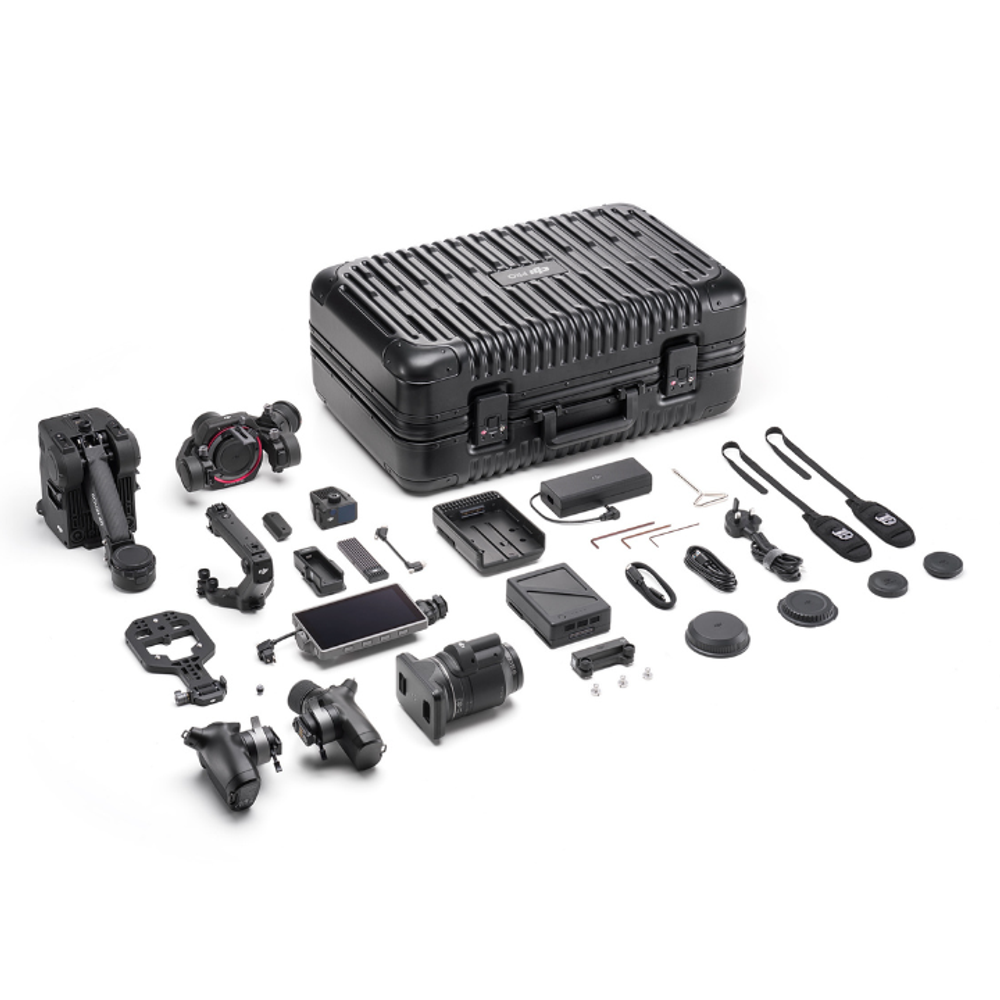

What you get in the box
01Zenmuse X9-8K Gimbal Camera x 1
02Main Body × 1
03LiDAR Range Finder × 1
04DL Mount × 1
05Left Hand Grip × 1
06Right Hand Grip × 1
07Top Handle × 1
08High-Bright Main Monitor × 1
09PROSSD 1TB × 1
10PROSSD Mount × 1
11TB50 Battery Mount × 1
12Power Adapter × 1
50-day return policy⌄
  • Return within 50 days of purchase.
  • Full refund for unopened, sealed, unactivated items.
  • Opened products may still qualify if unused.
  • For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm⌄
  • Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
  • UK Saturday delivery available on orders placed before 3pm Friday.
  • After 3pm Friday — dispatched Monday.
  • Some UK regions may need 2–3 working days.
Discounted options with main purchase⌄
  • Bundle pricing on accessories, spares and training when bought together.
  • Reduced rates on add-ons selected at checkout.
  • Ask us for a tailored quote on multi-unit or fleet orders.
DJI · Cameras

DJI Ronin 4D-8K Camera Combo

The DJI Ronin 4D is the industry's first 4-axis cinematic camera system for professional filmmakers. This 8K combo carries the full-frame Zenmuse X9-8K camera and a 1TB PROSSD.

Out of stock
DJI Ronin 4D-8K Camera Combo£11,038.00
Total today£11,038.00
Tax included in UKFree UK delivery

This product is out of stock but we can notify you as soon as it’s available again. Simply leave us your email and we’ll take care of the rest.

Pay with

Product dossier

Imaging excellence redefined

Ronin 4D-8K Combo Key Features

  • Full-frame 8K/60fps & 4K/120fps:

    Ronin 4D-8K supports internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video. The Zenmuse X9 camera supports up to 8K/60fps and 4K/120fps full-frame video recording. It also supports the ACES workflow.

  • Dual-native ISO 800/4000:

    X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000.

  • Built-In 9-Stop Physical ND Filters:

    X9 has 9-stop built-in physical ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to a motorised internal system.

  • DL/E/L/PL/M Interchangeable Lens Mount:

    X9 supports DJI's proprietary DL mount, as well as Leica L, Leica M, Sony E, ARRI PL, and more. Lenses compatible with these mounts can also be used with X9.

  • Autofocus on Manual Lenses:

    With the LiDAR focusing system and focus motor, autofocus is available - even on manual lenses.

  • 4-Axis Active Stabilization on Par with a Dolly:

    The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, stable footage effortlessly.

  • Wireless Video Transmission:

    O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission, with a range of up to 20,000ft.

Full specifications

DJI Ronin 4D-8K Camera Combo
Specifications
Main Body Dimensions (length x width x height)235 x 115 x 160 mm
Overall Dimensions (length×width×height)309 x 290 x 277 mm* *Measured when 6K Combo is fully set up with the main monitor attached and the Z-Axis off.
Gimbal WeightApprox. 1.04 kg
Main Body WeightApprox. 1.45 kg
Overall WeightApprox. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)
Max Operating TimeApprox. 150 minutes* *Measured with a fully-charged TB50 Battery and Ronin 4D in a still state with the gimbal balanced, the Z-axis inactive, and continuously recording in RAW. Gimbal movements or use of the Z-axis will reduce operating time.
Intelligent FeaturesActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
Storage Temperature-20° to 60°C (-4° to 140° F)
Operating Temperature-10° to 40°C (14° to 104° F)
Sensor Size35mm full-frame CMOS image sensor
Base Lens MountDX Mount, and support for other mount units
Supported Lens MountsDL Mount (standard), M Mount, and E Mount
DL LensDJI DL 24mm f/2.8 LS ASPH DJI DL 35mm f/2.8 LS ASPH DJI DL 50mm f/2.8 LS ASPH
Dynamic Range14+ stops
White BalanceManual 2,000-11,000 Kelvin and tint adjustment, supports AWB
GammaD-Log, Rec.709, HLG
EI RangeX9-8K: EI 200-12800, Dual Native ISO 800/4000 X9-6K: EI 200-12800, Dual Native ISO 800/5000
Shutter SpeedElectronic Rolling Shutter 1/24s-1/8000s
NDBuilt-in 9-stop ND filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5)，64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
Focus Control*Autofocus, Manual Focus, Automated Manual Focus *Autofocus on manual lenses requires DJI Zenmuse X9 Focus Motor.
X9-6K Max Bit Rate6008×3168, 48fps RAW 326MB/s
X9-8K Max Bit Rate8192×4320, 60fps RAW 506MB/s
Supported File SystemexFAT
Recording Format*Apple ProRes RAW HQ/Apple ProRes RAW Apple ProRes 422 HQ/Apple ProRes 422* H.264 (4:2:0 10-bit) *Supported through a future firmware update.
Storage MediaDJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
DJI PROSSD 1TB Recording FormatNo restriction on recording format
CFexpress 2.0 Type B Recording Format*ProRes 422 HQ: 6K: 23.976/24/25/29.97/30fps C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps 2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps H.264: C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps 2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps Please use reccommended Cfexpress cards.
USB-C SSD Recording Format*ProRes 422 HQ: C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps 2K: 23.976/24/25/29.97/30/48/50/59.94/60fps *Please use reccommended USB-C SSD. H.264: C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps 2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
Built-in MicBuilt-in 2-ch stereo
Audio FormatLPCM 2-ch, 24-bit 48kHz
Mechanical RangePan: ±330° Tilt: -75° to 175° Roll: -90° to 230° Z-Axis Range: approx 130mm* *Stabilisation range of the Z-axis is subject to change based on Z-axis modes and usage scenarios and may be smaller than the mechanical range.
Controllable RangePan: ±285° Tilt: -55° to +155° Roll: ±35°
Max Control Speed (°/s)DJI Master Wheels or DJI Force Pro: Tilt: 360°/s Roll: 360°/s Pan: 360°/s Ronin 4D Hand Grip: Tilt: 120°/s Roll: 120°/s Pan: 120°/s
Maximum Z-axis Payload2000 g (including 1040 g gimbal)
Angular Vibration Range±0.01°
Weight88 g
Dimensions (length x width x height)71 x 47 x 34 mm
Operating Temperature-10° to 40°C (14° to 104° F)
LiDAR Range Measurement Precision0.3-1m (±1%） 1-10m (±1.5%）
FOV30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical) 30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)
Safety RatingClass 1 (IEC 60825-1:2014) (safe for human eyes)
Operating EnvironmentUse in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.) DO NOT use in environments with dense fog or aim it at or through glass surfaces.
Laser Wavelength940 nm
Single Pulse WidthTwo kinds of pulses emit in circulation: 5ns and 33.4ns.
Max Laser Power6 W
Screen Size5.5 inches (diagonal)
Resolution1920 x 1080
Refresh Rate60Hz
Max Brightness1000 cd/m²
ScreenRotational LCD touchscreen
Battery TypeTB50 Intelligent Battery
Capacity4280 mAh
Energy97.58 Wh
Voltage22.8 V
Max Charging Voltage26.1 V
Max Charging Power180 W
Charging Temperature Range5° to 40°C (41° to 104° F)
Charging TimeApprox. 1.5 hours (with standard 65W power adapter)
Max Transmission Distance20,000 ft (approx. 6km, FCC-compliant)* *Unobstructed, free of interference.
Max Transmission Resolution and Frame Rate1920 x 1080 @60fps
Minimum End-to-End Latency100 ms or 68 ms* 100ms is measured at 4K/24fps, 68ms is measured at 4K/60fps.
Wireless FrequencyNon DFS frequency band: 2.400-2.483 GHz 5.150-5.250 GHz 5.725-5.850 GHz DFS Frequency Band*: 5.250-5.350 GHz 5.470-5.600 GHz 5.650-5.725 GHz *Some frequency bands may not be available depending on the legal policies of the region the monitor was activated in.
Transmitter Power (EIRP)2.400-2.4835 GHz: ≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC) 5.150-5.250 GHz <23 dBm (FCC/SRRC/CE/MIC) 5.250-5.350 GHz: <30 dBm (FCC); <23 dBm (SRRC/CE/MIC) 5.470-5.600 GHz, 5.650-5.725 GHz: <30 dBm (FCC);<23 dBm (CE/MIC) 5.725-5.850 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Max Bandwidth40 MHz
Max Bitrate50 Mbps
Main Body3.5mm TRS Stereo Input Jack x 1 (supports mic, plug-in power mic, and line inputs) 3.5mm Stereo Output Jack x 1 USB3.1 Type-C Data Port x 1 6-pin 1B DC-IN (DC 12-30 V) x 1 Battery Mount Power Port (female) x 1 4D Expansion Plate Data Port (female) x 1 High-Bright Main Monitor Port x 1 Hand Grips Port x 2 Top Handle Port x 1 HDMI Type-A Video Output Port x 1* *Currently supports HDMI 1.4 and will support HDMI 2.0 in a future firmware update.
X9 GimbalLiDAR Range Finder/ Focus Motor Port x 2
TB50 Battery MountBattery Mount Power Port (male) x 1 TB50 Battery Port x 1
Dimensions89 x 21 x 137 mm
4D Video Transmitter Port4D Expansion Plate Data Port (male) x 1 SMA Antenna Connector x 4 USB 3.1 Type-C Data Port x 1 Battery Mount Power Port (female) x 1 Battery Mount Power Port (male) x 1
Dimensions216 x 58 x 166 mm (includes monitor cage)
Screen Size7 inches (diagonal)
Max Brightness1500 cd/m²
Screen Resolution1920 x 1200
Refresh Rate60Hz
Max Battery LifeApprox. 2 hours* *Measured at 50% screen brightness with DJI WB37 battery.
Operating Temperature0° to 40°C (32° to 104° F)
Storage Temperature-20°C to 60°C (-4° to 140° F)
Power SystemDJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
Remote Monitor Port3.5mm Stereo Jack x 1 microSD Card Slot x 1 (This port is currently not available. Will support internal recording in a future firmware update.) HDMI Type-A Video Input Port x 1 (This port is currently not available. Will support HDMI 1.4 in a future firmware update.) Remote Monitor Expansion Plate High-Speed Port (female) x 1 Remote Monitor Accessory Expansion Port x 1 USB 3.1 Type-C Data Port x 1
Remote Monitor Expansion PortRemote Monitor Expansion High-Speed Port (male) x 1 HDMI 1.4 Type-A Video Output Port x 1 6-pin 1B DC-IN (DC 6.8-17.6 V) x 1 3G-SDI (Level A) BNC Video Output Port x 1

Frequently asked questions

How many versions does DJI Ronin 4D have? What are the differences between them?⌄

DJI Ronin 4D has two versions一6K and 8K.

The 6K version comes with an X9-6K Gimbal Camera that supports up to 6K/60fps and 4K/120fps video recording, while the 8K version includes an X9-8K Gimbal Camera that supports up to 8K/75fps and 4K/120fps video recording.

The 8K combo additionally includes a RAW License Key, DJI DL PZ 17-28 mm T3.0 ASPH Lens, PROSSD 1TB, PROSSD mount, and a USB-C to USB-C High-Speed Data Cable to meet higher creative requirements.

Check the In the Box of DJI Ronin 4D for a detailed list of included items.

What is the effective pixel amount of Zenmuse X9 Gimbal Cameras?⌄

The effective pixel number of Zenmuse X9-8K is 44.7 MP and X9-6K offers 24.1 MP.

How is the LiDAR Range Finder different from the 3D focusing system of DJI RS 2?⌄

The 3D focusing system of DJI RS 2 uses single-point focusing that only focuses on the centre of the target, while the LiDAR Range Finder can cast 43,200 ranging points, enabling faster and more accurate focusing and providing visual focusing with the LiDAR Waveform.

How is ActiveTrack Pro different from previous ActiveTrack versions?⌄

DJI's proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 allow ActiveTrack Pro to support the reliable tracking of almost any subject.

It can effectively recognize human faces, heads, shoulders, and even arms and legs. Continuous tracking of people is available even from longer distances.

You can now attain tracking shots effortlessly and even adjust composition at any time during tracking.

What devices are compatible with DJI Ronin 4D for remote control?⌄

DJI Ronin 4D supports remote control with DJI Master Wheels, DJI Force Pro*, and with the left and right grips attached the High-Bright Remote Monitor. Internal motion control is also supported using the High-Bright Remote Monitor.*

* Using DJI Ronin 4D with DJI Master Wheels and DJI Force Pro requires the High-Bright Remote Monitor and Remote Monitor Expansion Plate. Motion control with the High-Bright Remote Monitor is currently unavailable and will be supported through a future firmware update.
