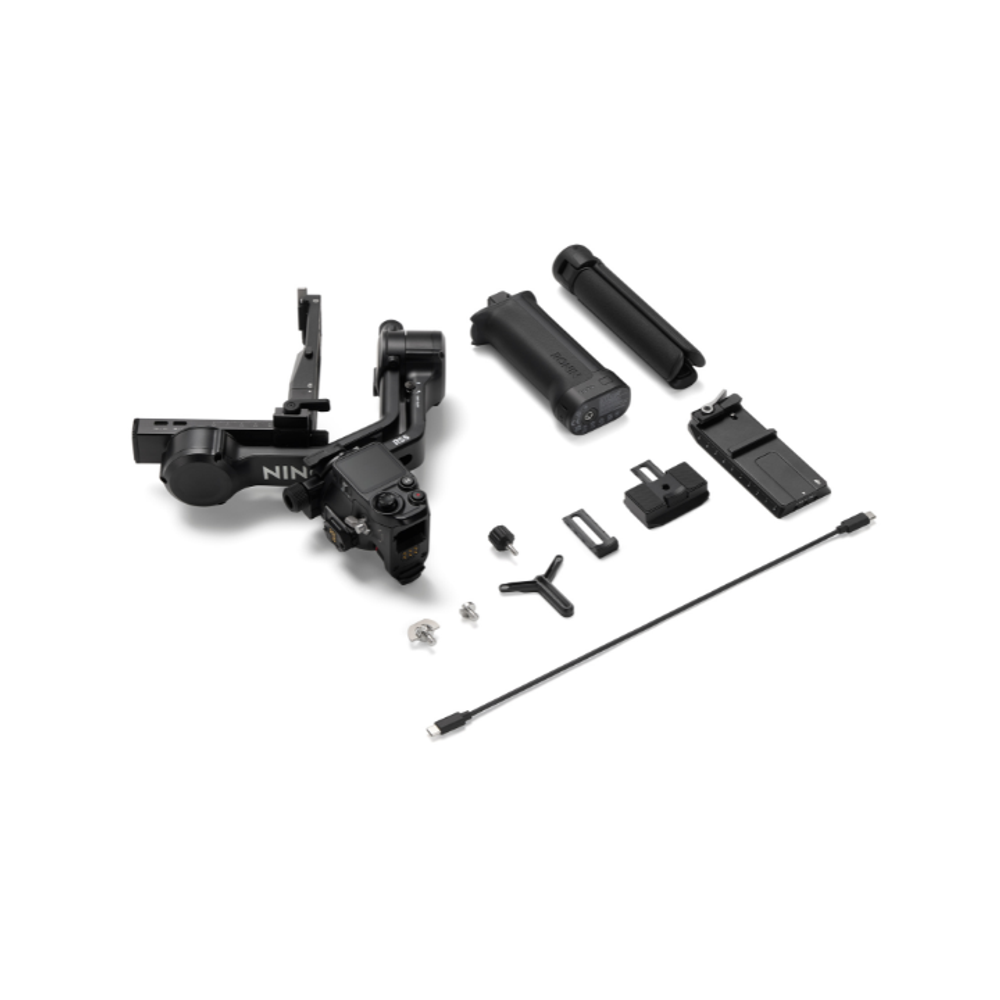

What you get in the box
01Gimbal x 1
02Quick-open Tripod x 1
03DJI logo sticker x 1
04Lens-fastening Support x 1
05Screw kit x 1
06RS 5 Upper Quick-release Plate x 1
07RS 5 Lower Quick-release Plate x 1
08BG33 Battery Grip x 1
09Multi-camera Control Cable (USB-C, 30m) x 1
50-day return policy⌄
- Return within 50 days of purchase.
- Full refund for unopened, sealed, unactivated items.
- Opened products may still qualify if unused.
- For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm⌄
- Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
- UK Saturday delivery available on orders placed before 3pm Friday.
- After 3pm Friday — dispatched Monday.
- Some UK regions may need 2–3 working days.
Discounted options with main purchase⌄
- Bundle pricing on accessories, spares and training when bought together.
- Reduced rates on add-ons selected at checkout.
- Ask us for a tailored quote on multi-unit or fleet orders.
DJI · Gimbal Stabilisers
DJI RS 5
The DJI RS 5 is a lightweight gimbal stabiliser.
Choose your combo
5 in stock — UK warehouse50-day returns
Add to your order
DJI RS 5 · Standard£485.00
Total today£485.00
Tax included in UKFree UK delivery
Pay with
Product dossier
Lightweight commercial gimbal stabiliser
DJI RS 5: Key features
Enhanced intelligent tracking and composition with the RS Enhanced Intelligent Tracking Module: Available separately or comes with the DJI RS 5 Combo.
New Electronic Briefcase Handle for effortless single-handed operation. Available separately or comes with the DJI RS 5 Combo.
1-hour full charge, 15% extended runtime.
Fine-tuning knobs and Teflon™ enhanced balancing.
This compact gimbal weighs 1.46kg and supports a payload up to 3kg.
New Z-Axis indicator
Full specifications
Peripheral
Accessory PortRonin Series Accessories (RSA)/NATO Ports / 1/4"-20 Mounting Hole / Cold Shoe Camera Control Port (USB-C) / Multifunctional Port (USB-C)
Battery15.8 kg
DimensionsModel: BHX715-2150-15.48 / Type: LiPo 4S / Capacity: 2150 mAh / Energy: 33.29 Wh / Voltage: 11.2 V to 17.8 V / USB Input: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A / Max Standby Time: Approx. 14 hours* / Charging Time: Approx. 1 hour** / Suggested Charging Temperature: 5° to 40° C (41° to 104° F) / / *The 14-hour standby time is achieved with the DJI RS BG33 Battery Grip. The DJI RS BG33 Battery Grip is not available for purchase in India. This data is measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced. / / **Measured at an ambient temperature of 25° C (77° F) using a 65W charger supporting PD protocol to fully charge the DJI RS BG33 Battery Grip. The DJI RS BG33 Battery Grip is not available for purchase in India.
ConnectionsBluetooth 5.0 / USB-C Charging Port
Ronin App RequirementsiOS 14.0 or above / Android 9.0 or above
Languages Supported by the TouchscreenEnglish, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload3.0 kg (6.6 lbs)
Maximum Controlled Rotation SpeedPan: 360°/s / Tilt: 360°/s / Roll: 360°/s
Mechanical RangePan Axis: 360° continuous rotation / Roll Axis: -95° to +240° / Tilt Axis: -112° to +214°
Axis LockAuto
Vertical ShootingSupported
Mechanical & Electrical Properties
Operating Frequency2.4000-2.4835 GHz
Bluetooth Transmitter Power<8 dBm
Operating Temperature-20° to 45° C (-4° to 113° F)
WeightGimbal: Approx. 1193 g (2.63 lbs) (including the Upper and Lower Quick-Release Plates and screws) / Grip: Approx. 274 g (0.6 lbs) / Quick-Open Tripod: Approx. 149 g (0.3 lbs) / Upper and Lower Quick-Release Plates: Approx. 93 g (0.21 lbs) (including screws)
DimensionsFolded: 247.4 x 115.7 x 258.7 mm (L×W×H, excluding camera, grip, and the Quick-Open Tripod) / / Unfolded: 223.2 x 192.2 x 418.8 mm (L×W×H, including grip, excluding camera and the Quick-Open Tripod)
Manuals & documents
Frequently asked questions
DJI RS 5 vs DJI RS 4 Pro vs DJI RS 4 vs DJI RS 4 Mini: What's the difference?⌄
The DJI RS 5 gimbal stabiliser brings some key upgrades on its predecessors, including featuring the 5th-Gen RS stabilisation algorithm.
The table below shows the key specifications between the DJI RS 5 vs DJI RS 4 Pro vs DJI RS 4 vs DJI RS 4 Mini gimbal stabilisers.
| Feature | DJI RS 5 | DJI RS 4 Pro | DJI RS 4 | DJI RS 4 Mini |
|---|---|---|---|---|
| Gimbal weight (including gimbal, battery grip, and quick-release plate) | 1.46 kg (3.21 lbs) | 1.6 kg (3.5 lbs) | 1.4 kg (3.0 lbs) | 890 g (2 lbs) |
| Tested payload | 3 kg (6.6 lbs) | 4.5 kg (10 lbs) | 3 kg (6.6 lbs) | 2 kg (4.4 lbs) |
| Recommended camera and lens combination | Sony: FX3/A7M4/A7C/A1 + FE 24-70 mm F2.8 Canon: R5 Mark II + RF 24-70 mm F2.8 Nikon: Z6 III/Z7 II + Z 24-70 mm F2.8 Panasonic: S5M2 + 24-60 mm F2.8 Fujifilm: X-T5 + XF 16-55 mm F2.8 | Red: Komodo + RF 24-70 mm F2.8 Blackmagic Design: BMPCC 6K Pro + EF 24-70 mm F2.8 Sony: FX6/FX3 + FE 24-70 mm F2.8 Canon: C70/R5C/R3 + RF 24-70 mm F2.8 Nikon: Z9 + Z 24-70 mm F2.8 Panasonic: S1H + L 24-70 mm F2.8 | Sony: A7S3/A7M4/A7C/A1 + FE 24-70 mm F2.8 Canon: R5/R6 + RF 24-70 mm F2.8 Nikon: Z6 II/Z7 II + Z 24-70 mm F2.8 Panasonic: GH6 + M4/3 12-60 mm F2.8-4.0 Fujifilm: X-T4 + X 16-55 mm F2.8 | Sony: A7S3/A7M4/A7C + FE 24-70 mm F2.8 GM II Sony: A6400 + E 16-50 mm F3.5-5.6 Canon: EOS R5 + RF 24-70 mm F2.8 Canon: EOS R7 + RF 15-30 mm F4.5-6.3 Nikon: Z7 II + Z 24-70 mm F2.8 Nikon: Z50 + Z 24-50 mm F4.0-6.3 Panasonic: S5 + L 20-60mm F3.5-5.6 Fujifilm: FX-T30 II + XC 15-45 mm F3.5-5.6 |
| Standalone Gimbal | Single-handed, dual-handed, briefcase, 3rd-gen native vertical shooting | Single-handed, dual-handed, briefcase, 2nd-gen native vertical shooting | Single-handed, dual-handed, briefcase, 2nd-gen native vertical shooting | Single-handed, briefcase, 3rd-gen native vertical shooting |
| Expansion | Briefcase control handle, ring handle | Vehicle mount, Steadicam, slider, cable cam, jib | Briefcase control handle, ring handle | N/A |
| Axis Locks | 2nd-gen automated axis locks | 2nd-gen automated axis locks | 2nd-gen automated axis locks | 2nd-gen automated axis locks |
| Axis Arm Material | Aluminum alloy, Teflon™ interlayers | Carbon fiber, Teflon™ interlayers | Aluminum alloy, Teflon™ interlayers | Aluminum alloy, Teflon™ interlayers |
| Appearance | Ronin next-gen gray and black design | Ronin next-gen red and black design | Ronin next-gen red and black design | Conventional design |
| Quick-Release Plate | Dual-layered (with adjustable placement guide) | Dual-layered (with adjustable placement guide), extended | Dual-layered (with adjustable placement guide) | Dual-layered (with adjustable placement guide). Positioning slots in the upper quick-release plate |
| Fine-Tuning Knob | Yes | Yes | Yes | Yes |
| Stabilisation Algorithm | 5th-Gen RS Stabilization Algorithm | 4th-Gen RS Stabilization Algorithm | 4th-Gen RS Stabilization Algorithm | 4th-Gen RS Stabilization Algorith |
| Shutter Connection | Bluetooth, shutter release cable | Bluetooth, shutter release cable | Bluetooth, shutter release cable | Bluetooth, shutter release cable |
| Parameter Setting Screen | 1.8″ OLED full-color touchscreen | 1.8″ OLED full-color touchscreen | 1.8″ OLED full-color touchscreen | 1.4″ LCD full-color touchscreen |
| Shortcut | Gimbal mode switch, joystick mode switch | Gimbal mode switch, joystick mode switch | Gimbal mode switch, joystick mode switch | Gimbal mode switch, joystick mode switch |
| Focusing System | N/A | 2nd-gen LiDAR focusing system (multi-point) | N/A | N/A |
| Video Transmission System | DJI SDR Transmission | DJI Transmission, DJI Ronin Image Transmitter | DJI Ronin Image Transmitter | N/A |
| Intelligent Tracking and Composition | DJI RS Enhanced Intelligent Tracking Module | DJI RS Intelligent Tracking Module | DJI RS Intelligent Tracking Module | DJI RS Intelligent Tracking Module |
| Expansion Port | RSA port × 1 NATO port × 2 Charging adapter port × 1 USB-C control port × 2 | RSA port × 2 NATO port × 2 Charging adapter port × 1 USB-C control port × 3 | RSA port × 1 NATO port × 2 Charging adapter port × 1 USB-C control port × 3 | NATO port × 1 USB-C control port × 1 |
| Battery Design | Detachable | Detachable | Detachable | Not detachable |
| Standby Time | Max 30 hours* * Requires the DJI RS BG70 High-Capacity Battery Grip, which is sold separately. Data was measured in a controlled environment. Actual experience may vary. | Max 29 hours* * Require the DJI RS BG70 High-Capacity Battery Grip, which is sold separately. Data was measured in a controlled environment. Actual experience may vary. | Max 29.5 hours* * Requires the DJI RS BG70 High-Capacity Battery Grip, which is sold separately. Data was measured in a controlled environment. Actual experience may vary. | 13 hours* * Data was measured in a controlled environment. Actual experience may vary. |
| Charging Time | Approx. 1 hour* * Measured in a 25° C (77° F) environment while using a 65W charger supporting PD protocol to fully charge the DJI RS BG33 Battery Grip. The DJI RS BG33 Battery Grip is not available for purchase in India. | 1.5 hours | 2.5 hours | 1 hour 50 minutes |
