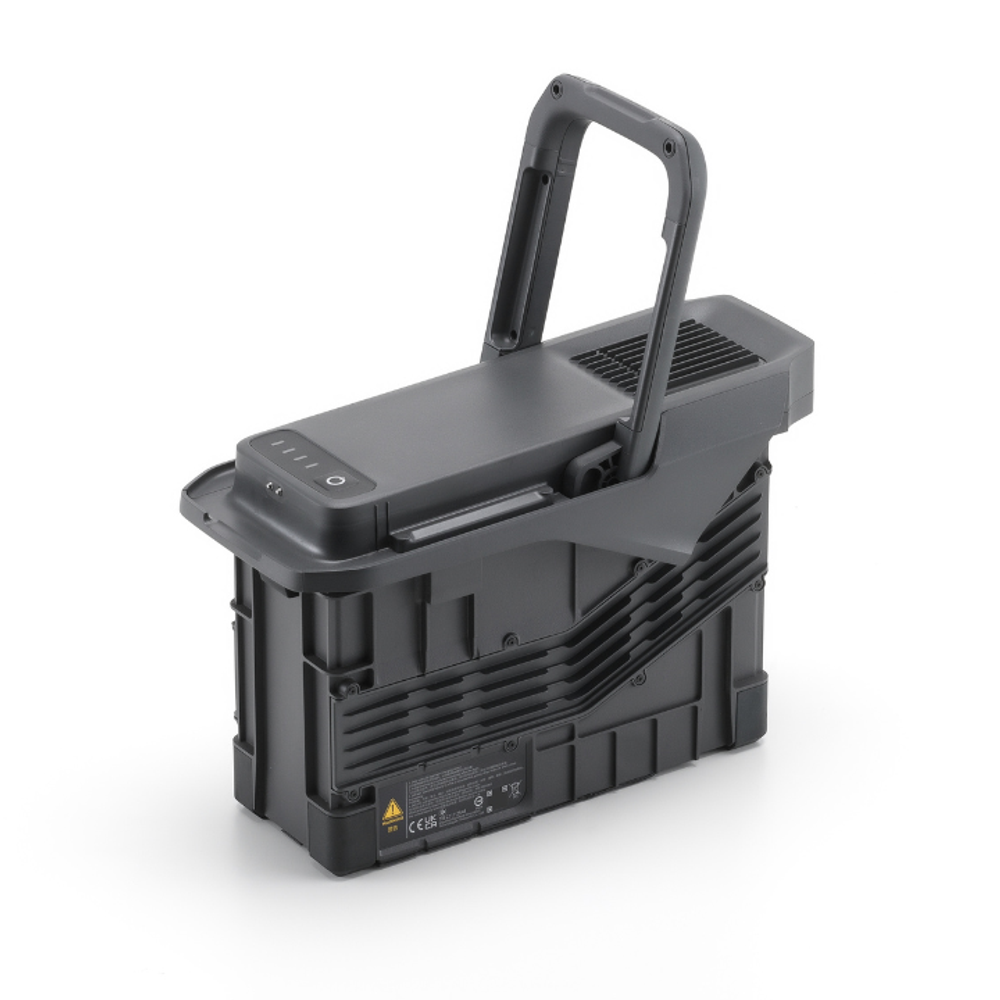

DJI TB100 Intelligent Flight Battery

SKU CP.EN.00000673.01

The DJI TB100 Intelligent Flight Battery for the M400 offers 20,254 mAh capacity, quick top-insert design, and hot-swap support for seamless operation.

5+ in stock — UK warehouseNext-day if ordered before 3pm50-day returns
Add to your order
DJI TB100 Intelligent Flight Battery£1,320.00
Total today£1,320.00
Tax included in UKFree UK delivery
Pay with

Product dossier

DJI TB100 Intelligent Flight Battery

High-capacity drone battery for DJI M400

DI TB100 Battery

  • Up to 59 minutes of flight time

  • High-capacity battery (20,254 mAh).

  • Top-insert design allows for quick insertion and removal.

  • Li-ion 13S.

  • 977 Wh energy.

  • 400 cycles.

DI TB100 Battery

Full specifications

DJI TB100 Intelligent Flight Battery
Specifications
Capacity20,254 mAh
TypeLi-ion 13S
Energy977 Wh
Cycle Life400 cycles

Manuals & documents

1 file

Frequently asked questions

How to recharge the TB100 battery?

You can use the BS100 battery station for charging.

How long does it take to fully recharge one TB100 Intelligent Flight Battery?

With a 220 V power supply: In fast charging mode, it takes approximately 45 minutes to fully recharge one DJI Matrice 400 battery. In silent mode, it takes approximately 110 minutes to fully recharge one DJI Matrice 400 battery.

With a 110 V power supply: In fast charging mode, it takes approximately 70 minutes to fully recharge one DJI Matrice 400 battery. In silent mode, it takes approximately 110 minutes to fully recharge one DJI Matrice 400 battery.

Charging time is measured in a test environment with a temperature of 25° C.

Does DJI Matrice 400 battery support self-heating functionality?

Yes.

When using the battery with the battery station: If the temperature of the TB100/TB100C battery is below 5°C, insert the battery into the battery station and turn on the power. The battery will automatically begin to heat. Once the battery temperature exceeds 20°C, self-heating will stop and charging will start.

When using the battery with the aircraft: If the battery temperature is below 20°C, insert the battery into the aircraft. The battery will automatically heat up to 20°C, then stop heating and enter a temperature maintenance mode.

How is the DJI TB100 power-off endurance function implemented?

To use the power-off endurance function, you can hot-swap the battery directly without needing to short press and then long press the power button to shut down.

If you do not want to use the power-off endurance function, shut down the device by short pressing once and then long pressing the power button.

What are the precautions when inserting or removing the battery?

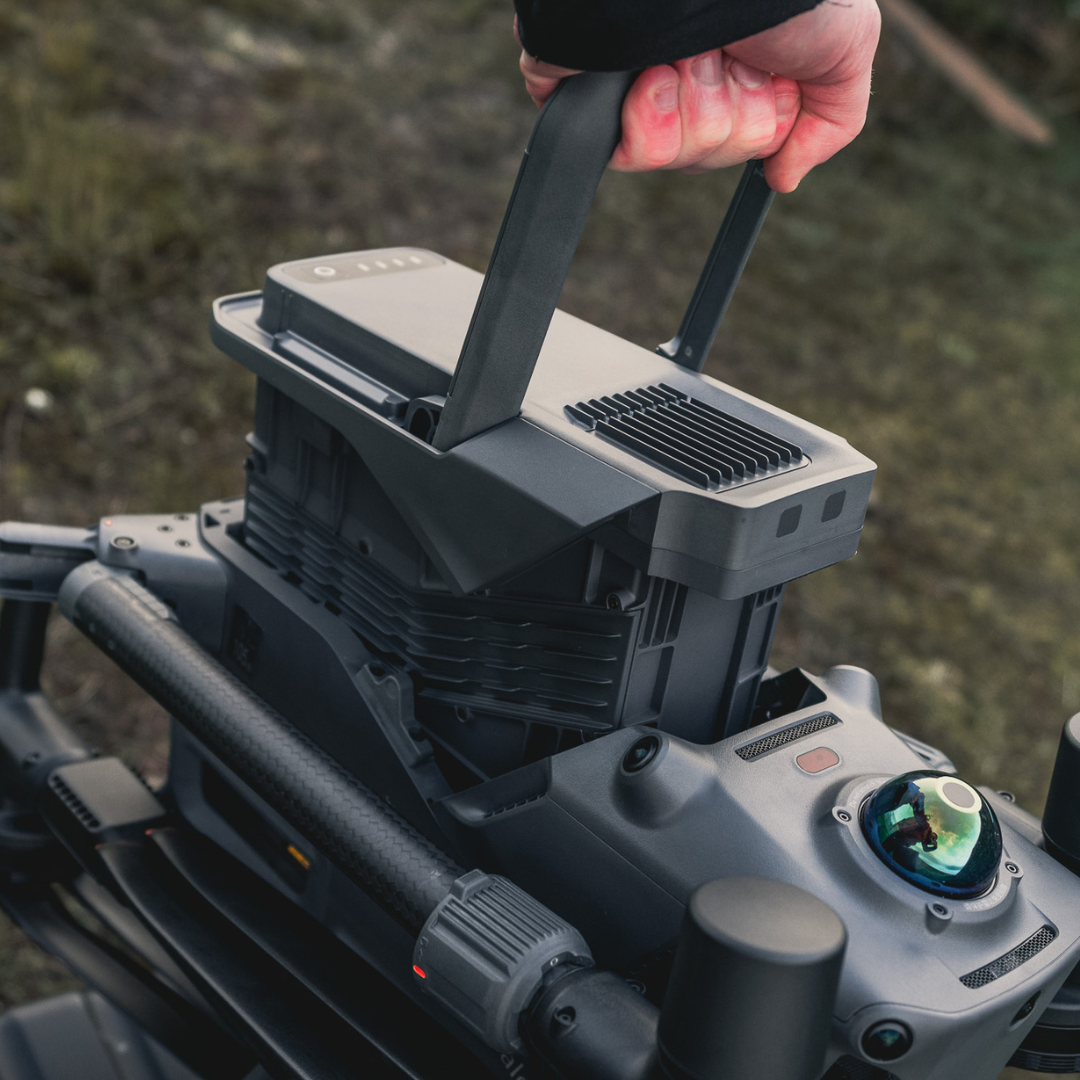

After inserting the battery into the aircraft, ensure it is fully locked in place before pressing down the handle. This helps prevent the handle from interfering with the pivot and potentially breaking.

And after the WB37 battery is fully charged, press the unlock button before removing the battery from the battery station.

How to confirm the DJI TB100 battery is properly installed?

When installing the battery onto the device, press down the handle until you hear a "click." This indicates that the handle is securely in place.
