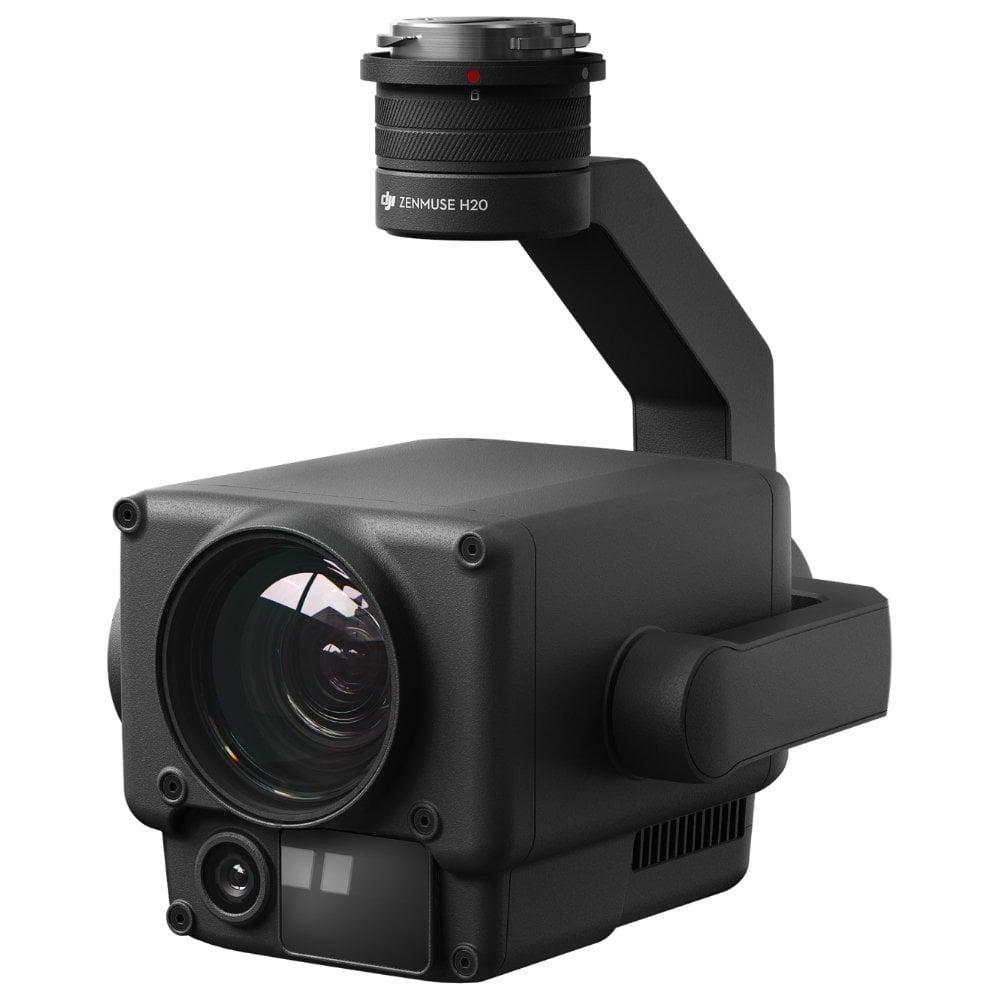

View 01 / 03The DJI H20 Camera for the DJI Matrice M300 RTK.
What you get in the box
01Gimbal and Camera × 1
02SanDisk Extreme microSD Card 32GB × 1
03Storage Case × 1
04Lens Cleaning Cloth × 1
50-day return policy⌄
  • Return within 50 days of purchase.
  • Full refund for unopened, sealed, unactivated items.
  • Opened products may still qualify if unused.
  • For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm⌄
  • Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
  • UK Saturday delivery available on orders placed before 3pm Friday.
  • After 3pm Friday — dispatched Monday.
  • Some UK regions may need 2–3 working days.
Discounted options with main purchase⌄
  • Bundle pricing on accessories, spares and training when bought together.
  • Reduced rates on add-ons selected at checkout.
  • Ask us for a tailored quote on multi-unit or fleet orders.
DJI · Payloads

Zenmuse H20 Camera

SKU CP.ZM.00000119.01

Triple-sensor payload with 12MP wide, 20MP zoom (23x hybrid, 200x max) & 1200m laser rangefinder. Compatible with DJI M350 RTK and DJI M300 RTK. Use for safety & inspections.

2 in stock — UK warehouseNext-day if ordered before 3pm50-day returns
Zenmuse H20 Camera£3,099.00£4,100.00
Total today£3,099.00
Tax included in UKFree UK delivery
Pay with

heliguy support & optional extras

1 Year DJI Care Enterprise BasicIncluded
Care plan · accidental damage cover
Free

Product dossier

Zenmuse H20 Camera

The Tripple-Sensor Solution

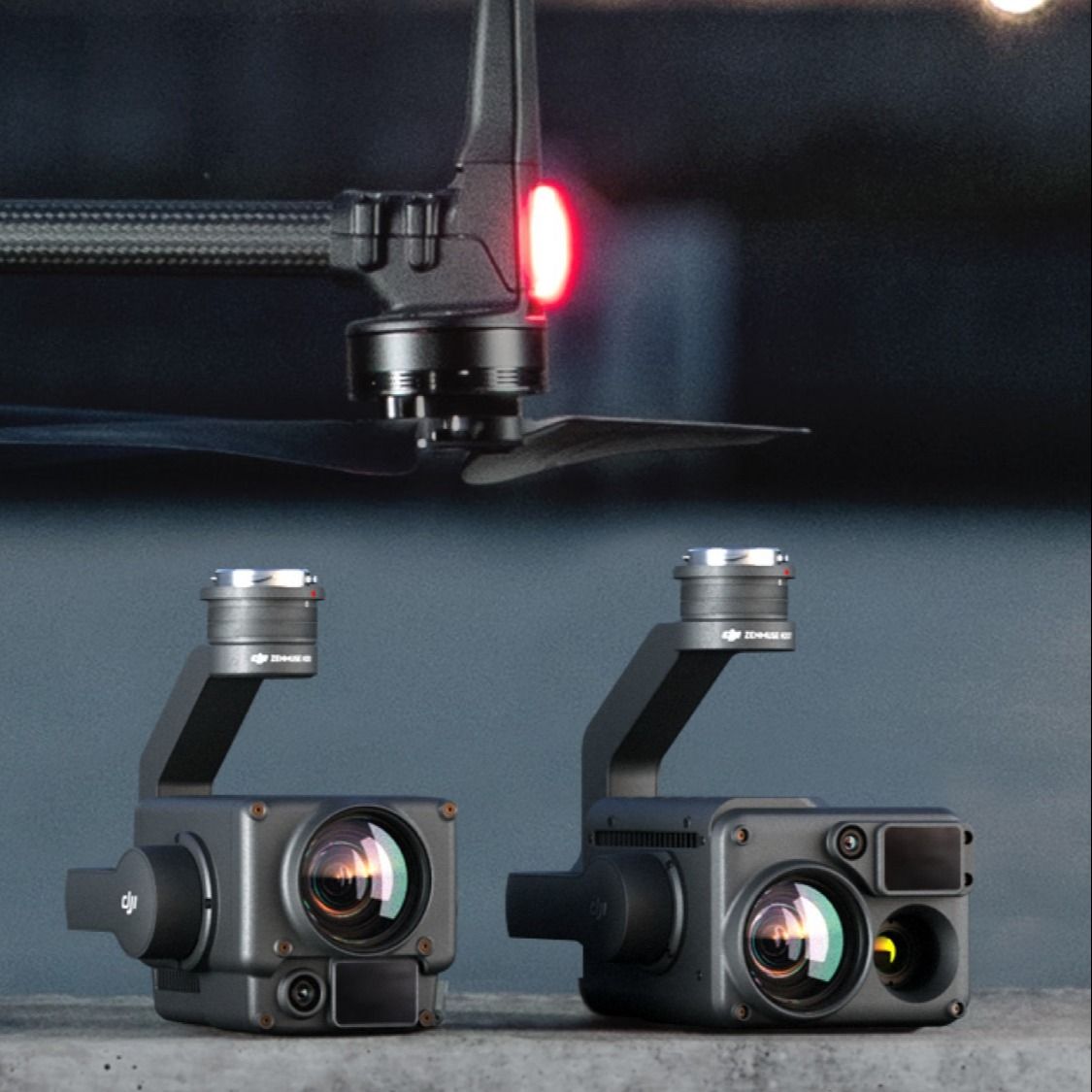

DJI Zenmuse H20

  • Tripple-Sensor Solution:

    The H20 integrates a 20 MP zoom camera, a 12 MP wide camera, and a 1200 m Laser Range Finder into a single, powerful payload.

  • Advanced Measurement:

    Features an integrated laser rangefinder (LRF) with a range of up to 1200 m for precise distance measurement.

  • Versatile Capabilities:

    Captures detailed images and video in true living colour or thermal, providing comprehensive situational awareness.

  • Enhanced Efficiency:

    Designed for DJI’s industrial drone platforms, offering advanced intelligent capabilities for various applications, from asset inspection to emergency response.

DJI Zenmuse H20

Full specifications

Zenmuse H20 Camera
General
WeightZenmuse H20: 678±5 g / Zenmuse H20T: 828±5 g
DimensionsZenmuse H20: 150×114×151 mm / Zenmuse H20T: 167×135×161 mm
Ingress Protection RatingIP44
Operating Temperature-20° to 50° C / (Temperature Measurement is only available between -10° to 50° C)
Storage Temperature-20° to 60° C
Laser SafetyClass 1M (IEC 60825-1:2014)
Supported AircraftMatrice 300 RTK
Gimbal
Angular Vibration Range±0.01°
MountDetachable
Controllable RangePitch: -120° to +30° / Yaw: ±320°
Mechanical RangePitch: -132.5° to +42.5° / Yaw: ±330° / Roll: -90° to +60°
Zoom Camera
Sensor1/1.7" CMOS, 20 MP
LensDFOV: 66.6°-4° / Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) / Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) / Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Focus ModeMF/AF-C/AF-S
Exposure ModeAuto, Manual
Exposure Compensation±3.0 (1/3 increments)
Metering ModeSpot metering, Center-weighted metering
AE LOCKSupported
Electronic Shutter Speed1 ~ 1/8000 s
ISO RangeVideo: 100 - 25600 / Photo: 100 - 25600
Video Resolution3840x2160@30fps, 1920x1080@30fps
Video FormatMP4
Video SubtitlesSupported
Photo Size5184 × 3888
Photo FormatJPEG
Wide Camera
Sensor1/2.3" CMOS, 12 MP
LensDFOV: 82.9° / Focal length: 4.5 mm (equivalent: 24 mm) / Aperture: f/2.8 / Focus: 1 m to ∞
Exposure ModeAuto
Exposure Compensation±3.0 (1/3 increments)
Metering ModeSpot metering, Center-weighted metering
AE LOCKSupported
Shutter Speed1 ~ 1/8000
ISO RangeVideo: 100 - 25600 / Photo: 100 - 25600
Video Resolution1920×1080@30fps
Video FormatMP4
Video SubtitlesSupported
Photo Size4056 x 3040
Photo FormatJPEG
Thermal Camera (Zenmuse H20T)
SensorUncooled VOx Microbolometer
LensDFOV: 40.6° / Focal length: 13.5 mm (equivalent: 58 mm) / Aperture: f/1.0 / Focus: 5 m to ∞
Digital Zoom1x, 2x, 4x, 8x
Video Resolution640×512 @ 30 Hz
Video FormatMP4
Image Resolution640×512
Image FormatR-JPEG (16 bit)
Pixel Pitch12 μm
Spectral Band8-14 μm
Noise Equivalent Temperature Difference (NETD)≤50 mK @ f/1.0
Temperature Measurement MethodSpot Meter / Area Measurement
Scene Range-40 °C to 150 °C (High Gain) / -40 °C to 550 °C (Low Gain)
Temperature AlertSupported
FFCAuto/ manual
PaletteWhite hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser RangefinderWave length: 905 nm / Measurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate) / Measurement accuracy: ± (0.2 m + D×0.15%) / Safety Regulation Level: Class 1M / Accessible Emission Limit (AEL): 327.84 nJ / Reference Aperture: 18mm length, 18mm width (20.3mm diameter if equivalent to circular) / Max Laser Pulse Emission Power Within 5 Nanoseconds: 65.6 W
Features
Hybrid Optical Zoom23×（DFOV：4°，EQV：556.2mm）
Max. Zoom200×（DFOV：0.5°，EQV：4800mm）
One Click CaptureOne click to save the video or picture of 3 cameras. / (zoom, wide and thermal camera) simultaneously
Point to AimDouble click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest.
High-Res Grid PhotoFrame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night SceneSupported / (zoom camera)
TimestampIncluding GPS, date, and time
StorageSupported SD Card: MicroSD card / / (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File SystemsFAT32 (≤ 32 GB), exFAT (> 32 GB)
Recommended Micro SD CardsTOSHIBA EXCERIA PRO 32GB micro SD HC II SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I TOSHIBA EXCERIA PRO 64GB micro SD XC II SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I SAMSUNG_EVO_128GB_micro SD 3 XC I TOSHIBA EXCERIA M303E 32GB micro SD HC I TOSHIBA EXCERIA M303E 64GB micro SD XC I TOSHIBA EXCERIA M303 128GB micro SD XC I SAMSUNG_EVO_64GB_micro SD 3 XC I

Manuals & documents

4 files
DJI Zenmuse H20 Series - Release NotesPDF · 97 KBDJI Zenmuse H20 - Quick Start GuidePDF · 28.5 MBDJI Zenmuse H20 - User Manual PDF · 14.4 MBEU Declaration of Conformity for Zenmuse H20PDF · 1.1 MB

Frequently asked questions

What payload configurations do the M300 RTK and M350 RTK support? ⌄

The M300 RTK and M350 RTK can carry up to three payloads at once.

Can the downward single gimbal connector be replaced with a dual gimbal connector? ⌄

Yes. To ensure safety, it is recommended that the aircraft be powered off and the TB60 intelligent flight batteries removed before the gimbal connector is replaced.

How many camera feeds can be viewed at the same time?⌄

Dual Remote Controller Mode: View up to three live feeds simultaneously (including FPV camera).

Single Remote Controller Mode: View of up to two live feeds simultaneously (including FPV camera).

Can I control multiple gimbals simultaneously?⌄

You can control the movements of each gimbal simultaneously, but you can't take photos or videos simultaneously.

What is DJI Care Enterprise and what options are available?⌄

DJI Care Enterprise offers comprehensive protection for your DJI Enterprise drone fleet. Two packages are available: DJI Care Enterprise Plus and DJI Care Enterprise Basic.

It provides DJI Enterprise products with coverage for a range of accidental damages, such as collisions, water damage, and misoperation. DJI Care Enterprise Plus also covers flyaways.

The table below shows the benefits of DJI Care Enterprise Plus vs DJI Care Enterprise Basic.

DJI Care Enterprise PlusDJI Care Enterprise Basic
Service modelUnlimited free repairs within the coverage limitAffordable replacements
Service quantityNo limitTwice a year
Service chargeFree repairsLow-cost replacement
Coverage for your whole fleetDJI Enterprise products bound to DJI Care Enterprise Plus at the same period ( within 30 days ) can share the total coverage-
Turnaround timePrioritised repairDJI Care Express
Flyaway coverage1 flyaway per year. Supported aircraft: DJI Matrice 30, DJI Matrice 30T, DJI Mavic 3 Enterprise, DJI Mavic 3 Thermal, DJI Mavic 3 Thermal Advanced, DJI Mavic 3 Multispectral, DJI Matrice 4T. DJI Matrice 4E. Flyaway fee applies.-
Factory maintenance1 factory maintenance per year. Supported aircraft: DJI Matrice 30, DJI Matrice 30T, DJI Matrice 30T Dock Version, DJI Mavic 3 Enterprise, DJI Mavic 3 Thermal, DJI Mavic 3 Thermal Advanced, DJI Mavic 3 Multispectral, DJI Matrice 350 RTK, DJI Matrice 3D, DJI Matrice 3TD.-
Annual free battery replacementsTwo free battery replacements - supported aircraft: DJI Matrice 350 RTK, DJI Matrice 3D, DJI Matrice 3TD, DJI Matrice 4D, DJI Matrice 4TD. One free battery replacement - supported aircraft: DJI Matrice 400-
Service periodUp to 3 consecutive yearsUp to 3 consecutive years
