Full specifications

DJI Air 3S (RC-N3)

Specifications

Takeoff Weight724 g

DimensionsFolded (without propellers): 214.19 x 100.63 x 89.17 mm (L×W×H) / Unfolded (without propellers): 266.11 x 325.47 x 106.00 mm (L×W×H)

Max Ascent Speed10 m/s

Max Descent Speed10 m/s

Max Horizontal SpeedAt sea level, in windless conditions: / 21 m/s / / At sea level, with 6 m/s tailwind, while flying in the same direction as the wind: / 27 m/s / /

Max Takeoff Altitude6000 m

Max Flight Time45 minutes

Max Hovering Time41 minutes

Max Flight Distance32km

Max Wind Speed Resistance12 m/s

Max Pitch Angle36°

Operating Temperature-10° to 40° C (14° to 104° F)

Global Navigation Satellite SystemGPS + Galileo + BeiDou

Hovering Accuracy RangeVertical: / ±0.1 m (with vision positioning) / ±0.5 m (with satellite positioning) / / Horizontal: / ±0.3 m (with vision positioning) / ±1.5 m (with satellite positioning)

Internal Storage42GB

Camera

Image SensorWide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels / / Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels

LensWide-Angle Camera / FOV: 84° / Format Equivalent: 24 mm / Aperture: f/1.8 / Focus: 0.5 m to ∞ / / Medium Tele Camera / FOV: 35° / Format Equivalent: 70 mm / Aperture: f/2.8 / Focus: 3 m to ∞

ISO RangeVideo / Normal: / 100-12800 (Normal) / 100-3200 (D-Log M) / 100-3200 (HLG) / Slow Motion: / 100-6400 (Normal) / 100-3200 (D-Log M) / 100-3200 (HLG) / / Photo / 100-6400 (12 MP) / 100-3200 (48 MP and 50 MP)

Shutter SpeedWide-Angle Camera / 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure) / 50MP Photo: 1/8000-2 s / / Medium Tele Camera / 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) / 48MP Photo: 1/16000-2 s

Max Image SizeWide-Angle Camera: 8192×6144 / Medium Tele Camera: 8064×6048

Still Photography ModesWide-Angle Camera / Single Shot: 12 MP and 50 MP / Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames / Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step / Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60s / / Medium Tele Camera / Single Shot: 12 MP and 48 MP / Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames / Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step / Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

Photo FormatJPEG/DNG (RAW)

Video ResolutionWide-Angle Camera/Medium Tele Camera: / H.264/H.265 / 4K: 3840×2160@24/25/30/48/50/60/120*fps / FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps / 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps / * Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.

Video FormatMP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video BitrateH.264/H.265: 130 Mbps

Supported File SystemexFAT

Colour ModeWide-Angle/Medium Tele Camera / Normal (FHD/2.7K): 8-bit 4:2:0 (H.264) / Normal (FHD/2.7K): 10-bit 4:2:0 (H.265) / HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265) / Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265)

Digital ZoomWide-Angle Camera: 1-2.9x / Medium Tele Camera: 3-9x

Gimbal

Stabilisation3-axis mechanical gimbal (tilt, roll, pan)

Mechanical RangeTilt: -135° to 70° / Roll: -50° to 50° / Pan: -27° to 27°

Controllable RangeTilt: -90° to 60° / Pan: -5° to 5°

Max Control Speed (tilt)100°/s

Angular Vibration Range±0.0037°

Sensing

Sensing TypeOmnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

ForwardMeasurement Range: 0.5-18 m / Detection Range: 0.5-200 m / Effective Sensing Speed: Flight Speed ≤ 15 m/s / FOV: Horizontal 90°, Vertical 72°

BackwardMeasurement Range: 0.5-18 m / Effective Sensing Speed: Flight Speed ≤ 14 m/s / FOV: Horizontal 90°, Vertical 72°

LateralMeasurement Range: 0.5-30 m / Effective Sensing Speed: Flight Speed ≤ 14 m/s / FOV: Horizontal 90°, Vertical 72°

UpwardMeasurement Range: 0.5-18 m / Effective Sensing Speed: Flight Speed ≤ 6 m/s / FOV: Front and Back 72°, Left and Right 90°

DownwardMeasurement Range: 0.3-14 m / Effective Sensing Speed: Flight Speed ≤ 6 m/s / FOV: Front and Back 106°, Left and Right 90°

Operating EnvironmentForward, Backward, Left, Right, and Upward: / Surfaces with discernible patterns and adequate lighting (lux > 1) / Downward: / Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1)

3D Infrafred SensorForward-Facing LiDAR / Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%) / FOV: Up and Down 60°, Left and Right 60° / / Downward-Facing Infrared Sensor / Measurement Range: 0.3-8 m (reflectivity > 10%) / FOV: Front and Back 60°, Left and Right 60°

Video Transmission

Video Transmission SystemO4

Live View QualityRemote Controller: / 1080p/30fps, 1080p/60fps

Operating Frequency2.4000-2.4835 GHz / 5.170-5.250 GHz / 5.725-5.850 GHz / / Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Transmission Power (EIRP)2.4 GHz: / < 33 dBm (FCC) / < 20 dBm (CE/SRRC/MIC) / / 5.1 GHz: / < 23 dBm (CE) / / 5.8 GHz: / < 33 dBm (FCC) / < 30 dBm (SRRC) / < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference)FCC: 20 km / CE: 10 km / SRRC: 10 km / MIC: 10 km / / Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.

Max Transmission Distance (unobstructed, with interference)Strong Interference: Urban landscape, approx. 1.5-4 km / Medium Interference: Suburban landscape, approx. 4-10 km / Low Interference: Suburb/Seaside, approx. 10-20 km / / Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (obstructed, with interference)Low Interference and Obstructed by Buildings: Approx. 0-0.5 km / Low Interference and Obstructed by Trees: Approx. 0.5-3 km / / Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Download SpeedO4: / 10 MB/s (with DJI RC-N3) / 10 MB/s (with DJI RC 2) / Wi-Fi 5: 30 MB/s* / / * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

Lowest LatencyAircraft + Remote Controller: Approx. 120 ms / / Depending on the actual environment and mobile device.

Antennas6 antennas, 2T4R

WiFi

Protocol802.11 a/b/g/n/ac

Operating Frequency2.400-2.4835 GHz / 5.725-5.850 GHz / 5.725-5.850 GHz /

Transmitter Power (EIRP)2.4 GHz: / < 20 dBm (FCC/CE/SRRC/MIC) / / 5.8 GHz: / ＜20 dBm (FCC/SRRC) / ＜14 dBm (CE)

Effective Operating Range50 m

Bluetooth

ProtocolBluetooth 5.1

Operating Frequency2.400-2.4835 GHz / / Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

Transmitter Power (EIRP)2.4 GHz: / < 20 dBm (FCC/CE/SRRC/MIC) / / 5.8 GHz: / < 20 dBm (FCC/SRRC) / < 14 dBm (CE)

Bluetooth

ProtocolBluetooth 5.2

Operating Frequency2.400-2.4835 GHz

Transmitter Power< 10 dBm

Battery

Capacity4276 mAh

WeightApprox. 247 g

Nominal Voltage14.6 V

Max Charging Voltage17.2 V

TypeLi-ion 4S

Energy62.5 Wh

Charging Temperature5° to 40° C (41° to 104° F)

Charging TimeApprox. 80 minutes (with DJI 65W Portable Charger) / Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

InputDJI 65W Portable Charger: / 100-240 V (AC), 50-60 Hz, 2 A / / DJI 100W USB-C Power Adapter: / 100-240 V (AC), 50-60 Hz, 2.5 A

OutputDJI 65W Portable Charger: / USB-C / 5 V, 5 A / 9 V, 5 A / 12 V, 5 A / 15 V, 4.3 A / 20 V, 3.25 A / 5-20 V, 3.25 A / / USB-A / 5 V, 2 A / / DJI 100W USB-C Power Adapter: / Max 100 W (total) / / When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.

Rated PowerDJI 65W Portable Charger: 65 W / DJI 100W USB-C Power Adapter: 100 W

Storage

Recommended microSD CardsLexar 1066x 64GB V30 U3 A2 microSDXC / Lexar 1066x 128GB V30 U3 A2 microSDXC / Lexar 1066x 256GB V30 U3 A2 microSDXC / Lexar 1066x 512GB V30 U3 A2 microSDXC / Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC / Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC / Kingston Canvas GO! Plus 256GB V30 U3 A2 microSDXC / Kingston Canvas GO! Plus 512GB V30 U3 A2 microSDXC

DJI RC-N3 Remote Controller

Max Operating TimeWithout Charging Any Mobile Device: 3.5 hours / When Charging a Mobile Device: 1.5 hours

Max Supported Mobile Device Size180×86×10 mm (L×W×H)

Operating Temperature-10° to 40° C (14° to 104° F)

Charging Temperature5° to 40° C (41° to 104° F)

Charging Time2 hours

Charging TypeIt is recommended to use a 5V/2A charger.

Battery Capacity9.36 Wh (3.6 V, 2600 mAh)

WeightApprox. 320 g

Dimensions104.2×150×45.2 mm (L×W×H)

Supported Mobile Device Port TypeLightning, USB-C, Micro-USB / / Using a mobile device with a Micro-USB port requires the DJI RC-N Series RC Cable (Standard Micro USB Connector), which is sold separately.

Video Transmission Operating Frequency2.4000-2.4835 GHz / 5.170-5.250 GHz / 5.725-5.850 GHz / Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Video Transmission Transmitter Power (EIRP)2.4 GHz: / < 33 dBm (FCC) / < 20 dBm (CE/SRRC/MIC) / / 5.1 GHz: / < 23 dBm (CE) / / 5.8 GHz: / < 33 dBm (FCC) / < 14 dBm (CE) / < 30 dBm (SRRC)

Manuals & documents

2 files

DJI Air 3S User Manual v1.0PDF · 5.6 MB DJI Air 3S Release NotesPDF · 67 KB

Customer reviews

Verified reviews via Judge.me

5.0

★★★★★

1 review

5★

4★

3★

2★

1★

★★★★★

“Absolutely brilliant service provider. Good reliable retailer”

Tommy Scott9 Sept 2025

Frequently asked questions

Compared with DJI Air 3, what are the main improvements of DJI Air 3S?⌄

Compared to the DJI Air 3, DJI Air 3S has comprehensive improvements in the camera system, vision sensing system, intelligent features, and video transmission system.

The main improvements include:

1. DJI Air 3S is equipped with an upgraded 1-inch CMOS primary camera, utilising a new image-processing platform with a video dynamic range of up to 14 stops*. It supports up to 4K/120fps video recording**. Additionally, its wide-angle and medium tele cameras support the new Free Panorama feature, which allows flexible shooting-range selections.

2. DJI Air 3S features new forward-facing LiDAR, supporting nightscape omnidirectional obstacle sensing*** and next-gen Smart RTH. It can actively identify and avoid obstacles, such as buildings along the flight and return paths, ensuring safer urban nightscape photography. It can also memorise flight paths in well-lit conditions, enabling quick takeoffs and safe returns even without satellite signals****.

3. DJI Air 3S adopts the O4 video transmission system, offering more stable signals, stronger anti-interference capabilities, and better image quality.

* 14 stops of dynamic range are achievable for video on Auto mode but not for vertical or slow-motion video.

** 4K/120fps video recording is only supported in Slow Motion mode.

*** This feature is only effective on surfaces with discernible textures and in lighting conditions exceeding 1 lux. Refer to the official DJI website or the product's user manual for details.

**** This feature is only effective on surfaces with discernible textures and in lighting conditions exceeding 10 lux. Refer to the official DJI website or the product's user manual for details.

What combos are available for the DJI Air 3S and what are the differences between them?⌄

Three options are available for DJI Air 3S. These are:

• DJI Air 3S & RC-N3: Includes the standard DJI RC-N3 remote controller. Use your smartphone to check the live feed and flight status.

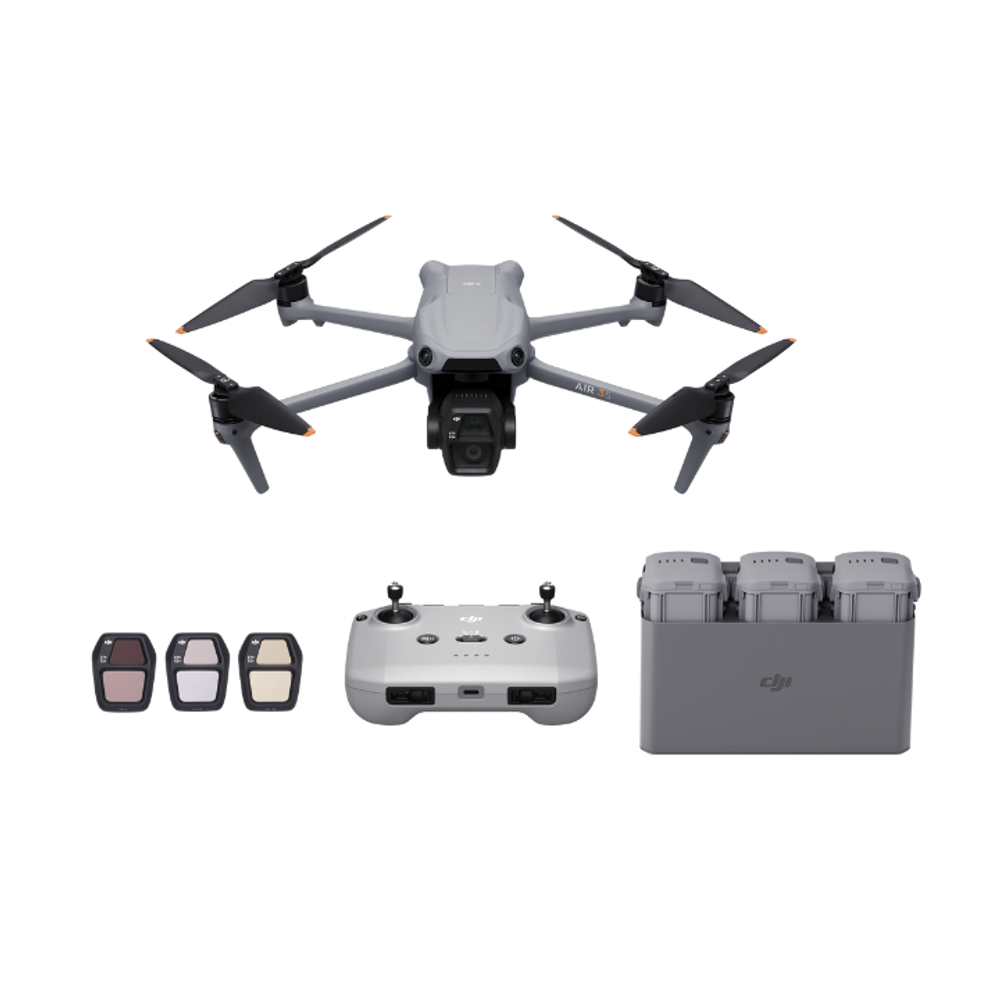

• DJI Air 3S & RC-N3 Fly More Combo: Includes the DJI RC-N3 remote controller, an ND filter set, two additional batteries, a battery charging hub, a shoulder bag, and more.

• DJI Air 3S & RC 2 Fly More Combo: Includes DJI RC 2 with a 5.5-inch 1080p 700-nit high-bright screen, an ND filter set, two additional batteries, a battery charging hub, a shoulder bag, and more.

How do I activate DJI Air 3S?⌄

With DJI RC-N3:

Connect your mobile device (connected to the internet) with the remote controller, and then connect to DJI Air 3S via the DJI Fly app. Follow the instructions in the app to activate DJI Air 3S.

With DJI RC 2:

When using DJI RC 2 for the first time, connect to the internet via Wi-Fi or a smartphone hotspot, and then follow the instructions in the DJI Fly app to activate the device. After activating DJI RC 2, connect it with DJI Air 3S via the DJI Fly app, and then follow the instructions in the app to activate the aircraft.

Is DJI Air 3S waterproof?⌄

No. Avoid contact with water during use, as it may damage the device.

If it rains during the flight, return and land as soon as possible, and wait until the aircraft is fully dry inside and out before using it again.

What app do I need to install before using DJI Air 3S?⌄

DJI Air 3S can only be used with the DJI Fly app. You can download the latest version of DJI Fly from the DJI Air 3S Downloads page on the official DJI website.

If you use DJI RC 2 as the remote controller, it comes with the pre-installed DJI Fly app.

Does DJI Air 3S support vertical shooting?⌄

Both the wide-angle camera and medium tele camera support vertical shooting (9:16), and a max video resolution is 2.7K/60fps.

Which remote controllers are compatible with DJI Air 3S?⌄

DJI Air 3S currently supports the following controllers:

DJI RC Pro 2

DJI RC 2

DJI RC-N3

DJI RC-N2

How do I update the firmware of DJI Air 3S?⌄

When the aircraft is connected to the remote controller and a new firmware version is available, the DJI Fly app will send you a firmware update prompt. You can follow the instructions to update the firmware for the aircraft, remote controller, battery, and other devices.

You can also update via the DJI Assistant 2 (Consumer Drones Series) software on a computer.

The latest version of the software can be downloaded from the DJI Air 3S Downloads page on the official DJI website.

Please be aware that certain factors can lead to an update failure, such as:

1. The battery level of the aircraft or remote controller is below 20%.

2. The aircraft or the remote controller is powered off during an update. If this happens, restart the aircraft and remote controller and try again.

3. The network is disconnected during a firmware download.

4. Your smartphone interface is switched to other apps during a firmware download.

The aircraft will restart multiple times during an update and automatically power off after completing the update.
