View 01 / 02DJI Agtas T25.
What you get in the box
01Aircraft x 1
02Tool Box x 1
03Remote controller x 1
04Remote controller strap x 1
05USB-C Cable x 1
06Screws and other accessories
50-day return policy
  • Return within 50 days of purchase.
  • Full refund for unopened, sealed, unactivated items.
  • Opened products may still qualify if unused.
  • For orders over £100, we can arrange your return via DPD or in-person drop-off.
Next-day delivery — order before 3pm
  • Order before 3pm Mon–Fri for next-working-day delivery (free over £99).
  • UK Saturday delivery available on orders placed before 3pm Friday.
  • After 3pm Friday — dispatched Monday.
  • Some UK regions may need 2–3 working days.
Discounted options with main purchase
  • Bundle pricing on accessories, spares and training when bought together.
  • Reduced rates on add-ons selected at checkout.
  • Ask us for a tailored quote on multi-unit or fleet orders.
DJI · Drones

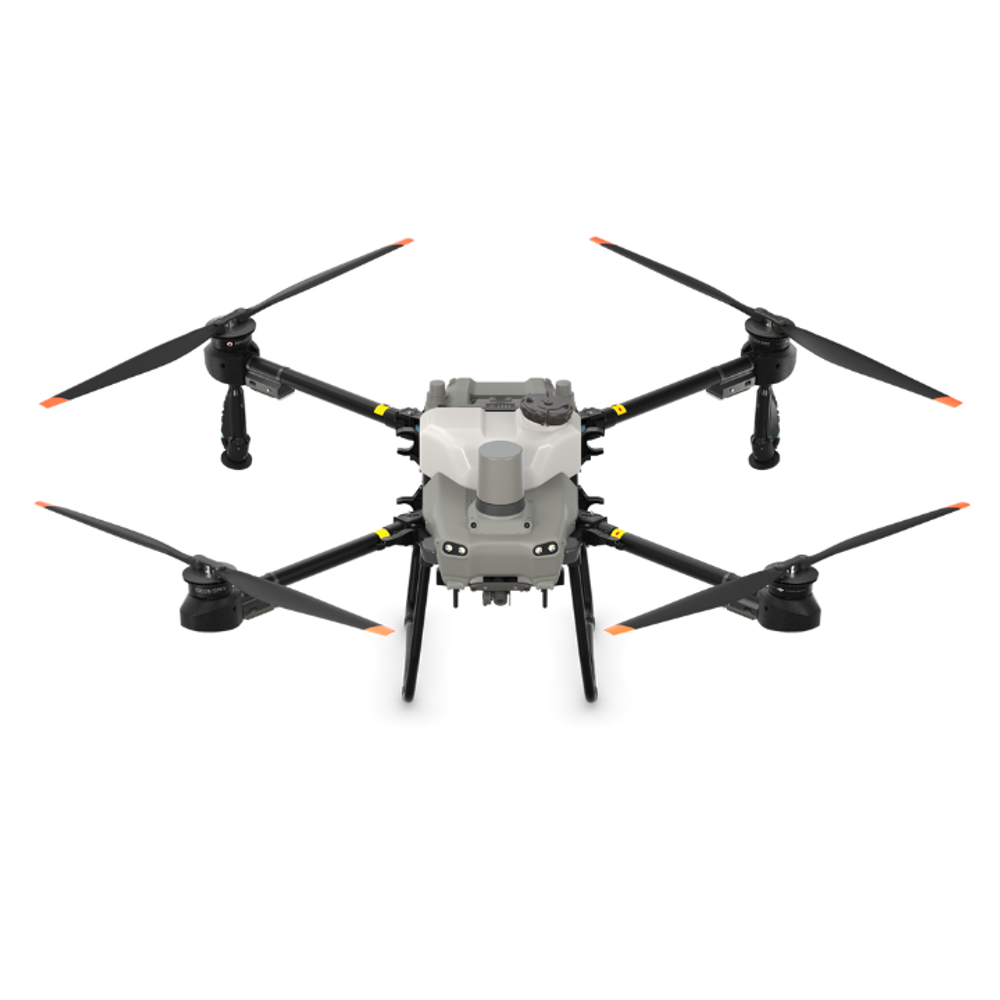

DJI Agras T25

DJI Agras T25 is a new spraying drone from DJI. It can carry a 20kg spraying or 25kg spreading payload.

Price on Request

Expert UK team · tailored advice · no obligation

Product dossier

DJI Agras T25

Flagship Spraying Drone

DJI Agras T50

  • Payload Capacity:

    Carry up to 20kg for spraying and 25kg for spreading, ensuring versatile application.

  • Dual Atomisation System:

    Features adjustable droplet sizes with a flow rate of up to 16 litres per minute for precise spraying.

  • Enhanced Connectivity:

    The upgraded four-antenna O3 Transmission system ensures stable remote connection for improved operational safety.

  • Obstacle Avoidance:

    Dual radar and binocular vision systems enable effective obstacle bypassing and terrain following.

DJI Agras T50

Full specifications

DJI Agras T25
Aircraft
Weight24.4 kg (excluding the battery) / / 32 kg (including the battery)
Maximum Takeoff WeightMaximum takeoff weight for spraying: 52 kg (at sea level) / / Maximum takeoff weight for spreading: 58 kg (at sea level)
Maximum Diagonal Wheelbase1925 mm
Dimensions2585×2675×780 mm (arms and propellers unfolded) / / 1475×1540×780 mm (arms unfolded and propellers folded) / / 1050×690×820 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)D-RTK enabled: / Horizontal: ±10 cm / Vertical: ±10 cm / D-RTK disabled: / Horizontal: ±60 cm / Vertical: ±30 cm (radar module enabled: ±10 cm)
RTK/GNSS Operating FrequencyRTK: / GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 / GNSS: / GPS L1, BeiDou B1I, GLONASS F1, Galileo E1, QZSS L1
Maximum Configurable Flight Radius2000 m
Maximum Wind Resistance6 m/s
Propulsion System - Motors
Stator Size100×28 mm
KV59 rpm/V
Power4600 W/rotor
Propulsion System - Propellers
MaterialNylon carbon fiber filament
Dimension50 inch
Propeller Rotation Diameter1270 mm
Quantity4
Dual Atomising Spraying System - Spray Tank
MaterialPlastic (HDPE)
Volume20 L
Operating Payload20 kg
Quantity1

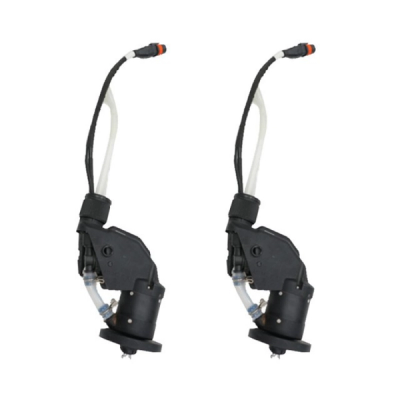

Dual Atomising Spraying System - Sprinklers
ModelLX8060SZ
Quantity2
Nozzle Distance1368 mm (Rear Nozzles)
Droplet Size50 - 500 μm
Effective Spray Width4-7 m (at a height of 3 m above the crops)
Dual Atomising Spraying System - Delivery Pumps
TypeImpeller pump (magnetic drive)
Quantity2
Single Pump Flow Rate0-12 L/min
Maximum Flow Rate16 L/min (2 sprinklers) / 24 L/min (4 sprinklers)

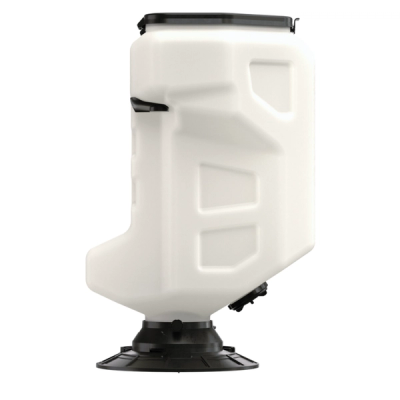

DJI AGRAS T25 Spreading System
Compatible Material Diameter0.5-5 mm
Spread Tank Volume35 L
Spread Tank Internal Load25 kg
Effective Spraying WidthVaries according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.
Phased Array Radar System
ModelRD241608RF (forward phased array radar) / RD241608RB (rear phased array radar)
Terrain FollowMax slope in Mountain mode: 20° / Altitude detection range: 1-50 m / Stabilisation working range: 1.5-30 m
Obstacle AvoidanceObstacle sensing range (omnidirectional): 1-50 m / FOV: / Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone) / Rear phased array radar: vertical 360°, horizontal ±45° / Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s. / Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking) / Sensing direction: 360° omnidirectional sensing
Binocular Vision System
Measurement range0.5-29 m
Effective Sensing Speed≤10 m/s
FOVHorizontal: 90° / Vertical: 106°
Operating EnvironmentAdequate light and discernible surroundings.
Remote Controller
ModelRM700B
Operating Frequency2.4000-2.4835 GHz, 5.725-5.850 GHz
Maximum Transmission Distance7 km (FCC), 5 km (SRRC) / 4 km (MIC/CE) / (unobstructed, free of interference, and at an altitude of 2.5 m)
Wi-Fi ProtocolWi-Fi 6
Wi-Fi Operating Frequency2.4000-2.4835 GHz, 5.725-5.850 GHz
Supported Resolution1080p
Battery Capacity5000 mAh
Battery Operating Time≈4 hours
Charging Case
Charge Time≈4 hours (with a 220 V 50 Hz charger)
Charging MethodDC power supply
Compatible BatteryTB25000

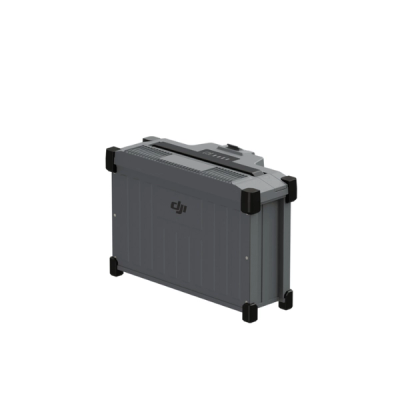

Battery
Capacity25,000 mAh
Voltage22.8 V
Energy570 Wh
Weight3.75 kg
Maximum Continuous Discharge Current25 A
Maximum Burst Current40 A (within 30 seconds)
Cycle Life≥200 cycles (when the remaining power is 30% and the charge and discharge current is 0.5C)

Manuals & documents

13 files

Frequently asked questions

How is the flight performance of the DJI AGRAS T25?

The maximum flight altitude is 100 m (subject to local regulations. Check with your local dealer), the longest control range is 2,000 m, the maximum flight speed is 10 m/s, and the maximum operating flight speed is 10 m/s.

What is the droplet size of the dual atomising spraying system of the DJI AGRAS T25? Is the droplet size adjustable?

The droplet size of the Agras T25 is 50-500 μm. This can be customised or set to one of six droplet size levels:

• Very Coarse

• Coarse

• Medium

• Fine

• Very Fine

• Extremely Fine.

On what conditions can the Active Obstacle Bypassing and Terrain Follow features be used for operations with the DJI AGRAS T50?

• These features can be used in AB flight routes and fully automatic operations but not in manual routes.

• The light intensity must be moderate, the scenarios must have rich texture features, and the Binocular Vision System must be free of stains or obstructions.

• Active Obstacle Bypassing is supported at an altitude of 2.5-8 m. Terrain Follow is supported at an altitude of 1.5-30 m.

• Obstacle Bypassing is not recommended around electric or guy wires.

What is the maximum slope that is supported in area surveying with the DJI AGRAS T50?

It can survey slopes up to 20°. To ensure a high success rate of surveying and mapping, the T50 will automatically adjust its flight speed based on the hill slope. The steeper the slope, the slower its speed.

Does the T50 Spreading System support powder spreading?

The T50 Spreading System does not support powder spreading.
