Full specifications

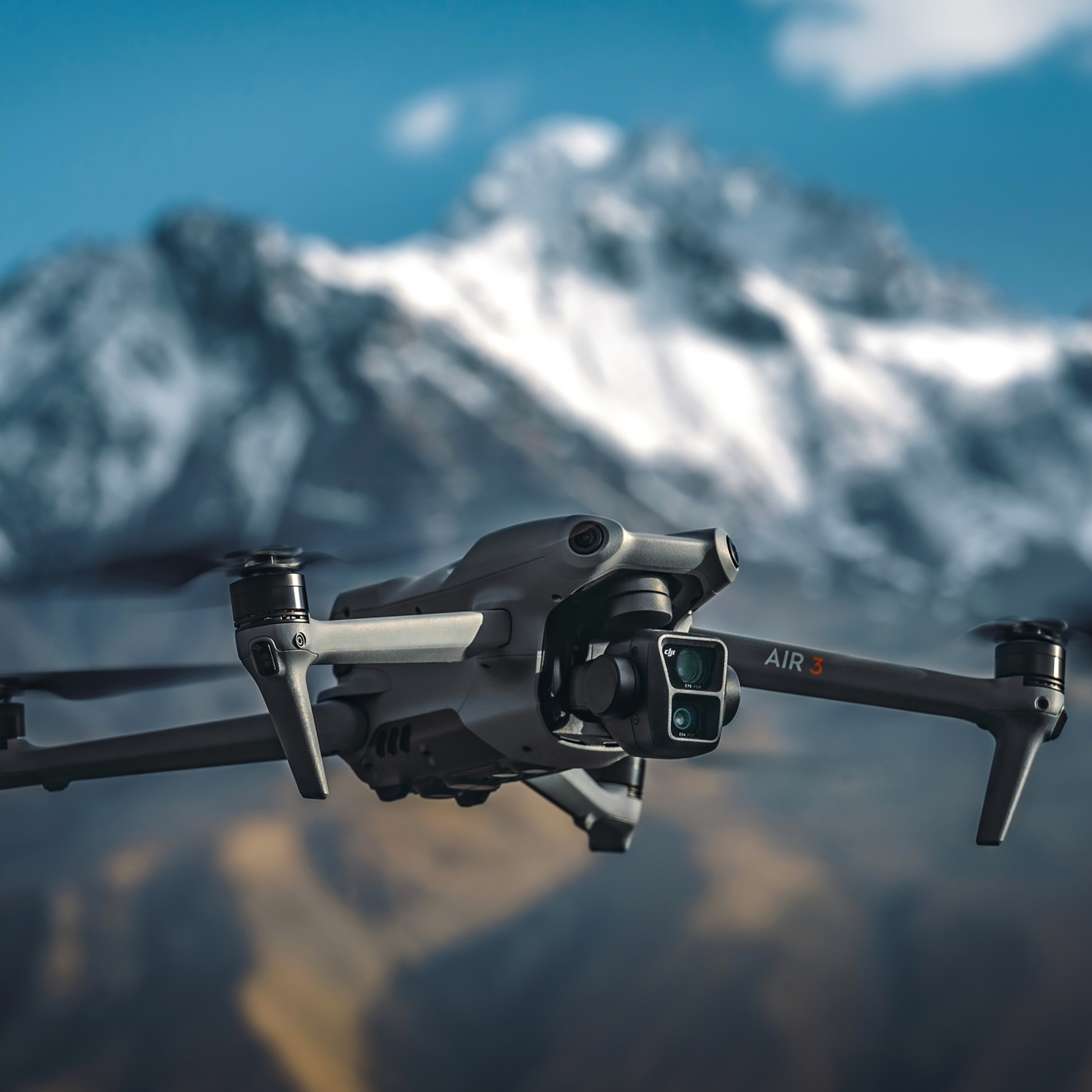

DJI Air 3

Specifications

Takeoff Weight720 g

DimensionsFolded (without propellers): 207×100.5×91.1 mm (L×W×H) / / Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H)

Max Ascent Speed10 m/s

Max Descent Speed10 m/s

Max Horizontal Speed (at sea level, no wind)21 m/s / / / / 19 m/s in EU regions.

Max Takeoff Altitude6000 m

Max Flight Time46 minutes / / / / Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Hovering Time42 minutes / / / / Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Flight Distance32 km

Max Wind Speed Resistance12 m/s

Max Pitch Angle35°

Operating Temperature-10° to 40° C (14° to 104° F)

Global Navigation Satellite SystemGPS + Galileo + BeiDou

Hovering Accuracy RangeVertical: / / ±0.1 m (with vision positioning) / / ±0.5 m (with GNSS positioning) / / / / Horizontal: / / ±0.3 m (with vision positioning) / / ±0.5 m (with high-precision positioning system)

Internal Storage8 GB

Camera

Image SensorWide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP / / Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP

LensWide-Angle Camera / / FOV: 82° / / Format Equivalent: 24 mm / / Aperture: f/1.7 / / Focus: 1 m to ∞ / / / / Medium Tele Camera / / FOV: 35° / / Format Equivalent: 70 mm / / Aperture: f/2.8 / / Focus: 3 m to ∞

ISO RangeVideo / / Normal and Slow Motion: / / 100-6400 (Normal) / / 100-1600 (D-Log M) / / 100-1600 (HLG) / / Night: / / 100-12800 (Normal) / / / / Photo / / 100-6400

Shutter SpeedWide-Angle Camera / / 12MP Photo: 1/16000-2 s (2-8 s for simulated long exposure) / / 48MP Photo: 1/8000-2 s / / / / Medium Tele Camera / / 12MP Photo: 1/16000-2 s (2-8 s for simulated long exposure) / / 48MP Photo: 1/8000-2 s

Max Image SizeWide-Angle Camera: 8064×6048 / / Medium Tele Camera: 8064×6048

Still Photography ModesWide-Angle Camera / / Single Shot: 12 MP and 48 MP / / Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames / / Automatic Exposure Bracketing (AEB): 12 MP and 48 MP, 3/5 frames at 0.7 EV step / / Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s / / / / Medium Tele Camera / / Single Shot: 12 MP and 48 MP / / Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames / / Automatic Exposure Bracketing (AEB): 12 MP and 48 MP, 3/5 frames at 0.7 EV step / / Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

Photo FormatJPEG/DNG (RAW)

Video ResolutionWide-Angle Camera: / / H.264/H.265 / / 4K: 3840×2160@24/25/30/48/50/60/100*fps / / FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps / / 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps / / FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps / / / / Medium Tele Camera: / / H.264/H.265 / / 4K: 3840×2160@24/25/30/48/50/60/100*fps / / FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps / / 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps / / FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps / / / / * Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps only supports H.265.

Video FormatMP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video BitrateH.264/H.265: 150 Mbps

Supported File SystemexFAT

Color Mode and Sampling MethodWide-Angle Camera / / Normal: 8-bit 4:2:0 (H.264/H.265) / / HLG/D-Log M: 10-bit 4:2:0 (H.265) / / / / Medium Tele Camera / / Normal: 8-bit 4:2:0 (H.264/H.265) / / HLG/D-Log M: 10-bit 4:2:0 (H.265)

Digital ZoomWide-Angle Camera: 1-3x / / Medium Tele Camera: 3-9x

Gimbal

Stabilization3-axis mechanical gimbal (tilt, roll, pan)

Mechanical RangeTilt: -135° to 70° / / Roll: -50° to 50° / / Pan: -27° to 27°

Controllable RangeTilt: -90° to 60° / / Pan: -5° to 5°

Max Control Speed (tilt)100°/s

Angular Vibration Range±0.0037°

Sensing

Sensing TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

ForwardMeasurement Range: 0.5-18 m / / Detection Range: 0.5-200 m / / Effective Sensing Speed: Flight Speed ≤ 12 m/s / / FOV: Horizontal 90°, Vertical 72°

BackwardMeasurement Range: 0.5-18 m / / Effective Sensing Speed: Flight Speed ≤ 12 m/s / / FOV: Horizontal 90°, Vertical 72°

LateralMeasurement Range: 0.5-30 m / / Effective Sensing Speed: Flight Speed ≤ 12 m/s / / FOV: Horizontal 90°, Vertical 72°

UpwardMeasurement Range: 0.5-18 m / / Effective Sensing Speed: Flight Speed ≤ 6 m/s / / FOV: Front and Back 72°, Left and Right 90°

DownwardMeasurement Range: 0.3-14 m / / Effective Sensing Speed: Flight Speed ≤ 6 m/s / / FOV: Front and Back 106°, Left and Right 90°

Operating EnvironmentForward, Backward, Left, Right, and Upward: / / Surfaces with discernible patterns and adequate lighting (lux > 15) / / Downward: / / Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

3D Infrared SensorMeasurement Range: 0.1-8 m (reflectivity > 10%) / / FOV: Front and Back 60°, Left and Right 60°

Video Transmission

Video Transmission SystemO4

Live View QualityRemote Controller: / / 1080p/30fps, 1080p/60fps

Operating Frequency2.4000-2.4835 GHz / / 5.170-5.250 GHz / / 5.725-5.850 GHz / / / 5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.

Transmitter Power (EIRP)2.4 GHz: / / < 33 dBm (FCC) / / < 20 dBm (CE/SRRC/MIC) / / / / 5.1 GHz: / / < 23 dBm (CE) / / / / 5.8 GHz: / / < 33 dBm (FCC) / / < 30 dBm (SRRC) / / < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference)FCC: 20 km / / CE: 10 km / / SRRC: 10 km / / MIC: 10 km / / / / Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.

Max Transmission Distance (unobstructed, with interference)/ Strong Interference: urban landscape, approx. 1.5-4 km / / Medium Interference: suburban landscape, approx. 4-10 km / / Low Interference: suburb/seaside, approx. 10-20 km / / / / Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (obstructed, with interference)Low Interference and Obstructed by Buildings: approx. 0-0.5 km / / Low Interference and Obstructed by Trees: approx. 0.5-3 km / / / / Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Download SpeedO4: / / 10 MB/s (with DJI RC-N2 Remote Controller) / / 10 MB/s (with DJI RC 2) / / Wi-Fi 5: 30 MB/s* / / / / * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

Lowest LatencyAircraft + Remote Controller: approx. 120 ms / / / / Depending on the actual environment and mobile device.

Antenna6 antennas, 2T4R

Wi-Fi

Protocol802.11 a/b/g/n/ac

Operating Frequency2.400-2.4835 GHz / / 5.725-5.850 GHz

Transmitter Power (EIRP)2.4 GHz: / / < 20 dBm (FCC/CE/SRRC/MIC) / / / / 5.8 GHz: / / < 20 dBm (FCC/SRRC) / / < 14 dBm (CE)

Bluetooth

ProtocolBluetooth 5.2

Operating Frequency2.400-2.4835 GHz

Transmitter Power (EIRP)< 10 dBm

Battery

Capacity4241 mAh

WeightApprox. 267 g

Nominal Voltage14.76 V

Max Charging Voltage17 V

TypeLi-ion 4S

Energy62.6 Wh

Charging Temperature5° to 40° C (41° to 104° F)

Charging TimeApprox. 80 minutes (with DJI 65W Portable Charger) / / Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

InputDJI 65W Portable Charger: / / 100-240 V (AC), 50-60 Hz, 2 A / / / / DJI 100W USB-C Power Adapter: / / 100-240 V (AC), 50-60 Hz, 2.5 A

OutputDJI 65W Portable Charger: / / USB-C / / 5 V, 5 A / / 9 V, 5 A / / 12 V, 5 A / / 15 V, 4.3 A / / 20 V, 3.25 A / / 5-20 V, 3.25 A / / / / USB-A / / 5 V, 2 A / / DJI 100W USB-C Power Adapter: / / Max 100 W (total) / / / / When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.

Rated PowerDJI 65W Portable Charger: 65 W / / DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

InputUSB-C: 5-20 V, max 5 A

Output (power accumulation)Battery Port: 12-17 V, 3.5 A

Output (charging)Battery Port: 12-17 V, max 5 A

Output (USB)USB-C: / / 5 V, 3 A / / 9 V, 5 A / / 12 V, 5 A / / 15 V, 5 A / / 20 V, 4.1 A

Charging TypeThree batteries charged in sequence.

CompatibilityDJI Air 3 Intelligent Flight Battery

Car Charger

InputCar Power Input: / / 12.7-16 V, 6.5 A, rated voltage 14 V (DC)

OutputUSB-C: / / 5 V, 5 A / / 9 V, 5 A / / 12 V, 5 A / / 15 V, 4.3 A / / 20 V, 3.25 A / / 5-20 V, 3.25 A / / / / USB-A: / / 5 V, 2 A

Rated Power65 W

Charging Temperature5° to 40° C (41° to 104° F)

Storage

Recommended microSD CardsSanDisk Extreme PRO 32GB V30 U3 A1 microSDHC / / Lexar 1066x 64GB V30 U3 A2 microSDXC / / Lexar 1066x 128GB V30 U3 A2 microSDXC / / Lexar 1066x 256GB V30 U3 A2 microSDXC / / Lexar 1066x 512GB V30 U3 A2 microSDXC / / Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC / / Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC / / Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC / / Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC / / Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC / / Samsung EVO Plus 512GB V30 U3 A2 microSDXC

DJI RC-N2 Remote Controller

ModelRC151

Max Operating TimeWithout charging any mobile device: 6 hours / / When charging a mobile device: 3.5 hours

Max Supported Mobile Device Size180×86×10 mm (L×W×H)

Operating Temperature-10° to 40° C (14° to 104° F)

Charging Temperature5° to 40° C (41° to 104° F)

Charging Time2.5 hours

Charging TypeIt is recommended to use a 5V/2A charger.

Battery Capacity5200 mAh

Type18650 Li-ion

Dimensions104.22×149.95×45.25 mm (L×W×H)

Weight375 g

Supported Mobile Device Port TypeLightning, USB-C, Micro-USB / / / Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately.

Video Transmission Operating Frequency2.4000-2.4835 GHz / / 5.170-5.250 GHz / / 5.725-5.850 GHz

Video Transmission Transmitter Power (EIRP)2.4 GHz: / / < 33 dBm (FCC) / / < 20 dBm (CE/SRRC/MIC) / / / / 5.1 GHz: / / < 23 dBm (CE) / / / / 5.8 GHz: / / < 33 dBm (FCC) / / < 14 dBm (CE) / / < 30 dBm (SRRC)

Manuals & documents

4 files

DJI Air 3 Release NotesPDF · 97 KB DJI Air 3 Battery Charging Hub User GuidePDF · 1.3 MB DJI Air 3 Safety Guidelines DJI RC-N2PDF · 1.2 MB DJI Air 3 User Manual v1.4PDF · 13.9 MB

Frequently asked questions

What DJI Air 3 combos are available? Which one is best for me?⌄

The DJI Air 3 is available in three different versions. These are:

• DJI Air 3 (RC-N2 controller, separate smart device required)

• DJI Air 3 Fly More Combo (RC-N2, RC-N2 controller, separate smart device required)

• DJI Air 3 Fly More Combo (RC 2, smart controller with built-in screen)

The Fly More Combos feature more accessories, such as the Battery Charging Hub and additional flight batteries - working out more cost-effective than purchasing these additional extras separately.

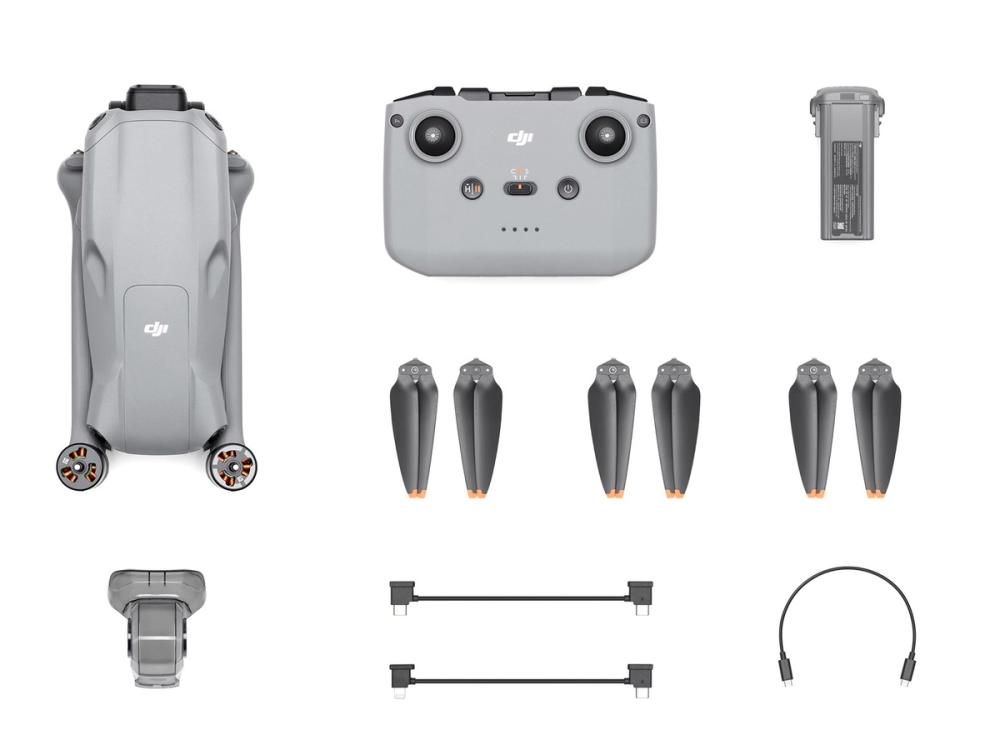

The table below shows the difference between each Air 3 package.

	DJI Air 3 (RC-N2)	DJI Air 3 Fly More Combo (RC-N2)	DJI Air 3 Fly More Combo (RC 2)
DJI Air 3 drone	1	1	1
DJI Air 3 Low-Noise Propellers (Pair)	3	6	6
DJI Air 3 Gimbal Protector	1	1	1
DJI RC-N2 Remote Controller	1	1	-
DJI RC-N2 RC Cable (USB-C Connector)	1	1	-
DJI RC-N2 RC Cable (Lightning Connector)	1	1	-
DJI RC 2	-	-	1
DJI Air 3 Battery Charging Hub	-	1	1
USB-C Cable	1	1	1
DJI Air 3 Intelligent Flight Battery	1	3	3
DJI Shoulder Bag	-	1	1

Compared with DJI Air 2S, what are the main upgrades of DJI Air 3?⌄

DJI Air 3 has improved the camera system, video transmission system, vision sensing system, flight time, and intelligent features. Details are as follows:

1. A 1/1.3-inch CMOS 70mm medium tele camera has been added to complement the 1/1.3-inch CMOS 24mm wide-angle camera, delivering consistent image quality* and more dynamic imaging possibilities.

2. The video transmission system has been upgraded to the next-gen O4 HD video transmission system, which not only delivers an FHD video transmission from a max range of 10 km (CE), but also features enhanced anti-interference capabilities, further improving the transmission stability. The remote controller also supports a 1080p/60fps max real-time live feed, with the higher frame rate delivering a smoother viewing experience.

3. Equipped with an omnidirectional vision sensing system, the drone can detect obstacles in all directions. When obstacles are detected, the drone can use APAS 5.0 to perform smoother avoidance movements for a safer overall flight experience.

4. The max hovering time and the max flight time are 42 minutes and 46 minutes respectively, which are 40% and 48% higher than those of DJI Air 2S respectively, allowing you to create with peace of mind.

5. The drone supports Waypoint Flight, Advanced RTH, Cruise Control, QuickTransfer, and other intelligent functions, greatly improving creative efficiency.

* The wide-angle camera and medium tele camera have different apertures.

Compared with the O3 video transmission system, what are the upgrades of the O4 video transmission system?⌄

The O4 video transmission system adopts an all-new hardware solution. The aircraft antenna system is upgraded from four antennas to six, and a new frequency band* has been added.

The communication algorithm has also been upgraded, which not only delivers an FHD video transmission from a max range of 10 km (CE), but also features enhanced anti-interference capabilities, further improving the transmission stability in complex environments like urban settings.

The remote controller also supports a 1080p/60fps max real-time live feed, with the higher frame rate delivering a smoother viewing experience.

*Can be used only in countries and regions where it is allowed by local laws and regulations.

Which remote controllers are compatible with the DJI Air 3?⌄

The following remote controllers are compatible with DJI Air 3:

• DJI RC Pro 2

• DJI RC 2

• DJI RC-N3

• DJI RC-N2

• DJI RC Motion 3

• DJI RC Motion 2

Compared with DJI RC-N2, what are the advantages of DJI RC 2?⌄

When using DJI RC-N2, you need to connect your smartphone and download the DJI Fly app.

DJI RC 2 comes with a 5.5-inch 1080p FHD screen with a brightness of up to 700 nits, delivering a better outdoor viewing experience.

Additionally, with the DJI Fly app pre-installed, you can enjoy immediate use after powering on without connecting to your smartphone, facilitating concentrated and efficient creation.

Compared with the DJI RC-N1 Remote Controller, what are the upgrades of the DJI RC-N2 Remote Controller?⌄

The video transmission solution has been upgraded, and the antenna system is upgraded from 1T2R to 2T2R. With DJI Air 3, the O4 video transmission can be used.

Compared with DJI RC, what are the upgrades of DJI RC 2?⌄

The performance of the processor is improved for smoother operation.

The video transmission solution has been upgraded, and the antenna system has been upgraded from 1T2R to 2T4R. With DJI Air 3, O4 video transmission can be used.

DJI RC 2 features two built-in antennas and two external antennas, and also allows angle adjustments for the external dual antennas to achieve better video transmission effects.

How is ActiveTrack 5.0 different from ActiveTrack 4.0?⌄

ActiveTrack 5.0 can track subjects in eight directions, enabling more creative possibilities.

Embedded with advanced subject recognition technology, ActiveTrack 5.0 uses multiple vision sensors simultaneously to recognise a subject, differentiate it from other objects, and lock the subject in the frame. It allows you to adjust tracking angles smoothly for more natural results.

Thanks to the new environment and subject-sensing algorithms, DJI Air 3 responds earlier to subject movements and environmental information and plans an optimal tracking route to record smooth and stable footage.
