Full specifications

DJI Avata 360 (DJI RC 2)

Aircraft

Takeoff WeightApprox. 455 g

Dimensions (L x W x H)246 x 199 x 55.5 mm

Max Ascent Speed2 m/s (Cine mode) / 6 m/s (Normal mode) / 10 m/s (Sport mode)

Max Descent Speed1.5 m/s (Cine mode) / 6 m/s (Normal mode) / 10 m/s (Sport mode)

Max Horizontal SpeedAt sea level, in windless conditions: 6 m/s (Cine mode) / 16 m/s* (Normal mode) / 18 m/s (Sport mode) / / Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft ascending vertically to a height of 1.5 meters above the ground. Actual experience may vary depending on the environment, usage, and firmware version. / *Up to 12 m/s in Normal mode by default, adjustable to 16 m/s in settings.

Max Takeoff Altitude4500 m / / Measured in a windless environment when taking off from an altitude of 4500 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

Max Flight TimeApprox. 23 mins / / Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 21.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

Max Hovering TimeApprox. 22 mins / / Measured when hovering in a windless environment at sea level, and the camera in photo mode, until a forced landing due to battery depletion. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.

Max Flight Distance13.5 km / / Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 39.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

Max Wind Speed Resistance10.7 m/s (Level 5)

Max Pitch Angle48°

Operating Temperature-10° to 40° C (14° to 104° F)

Global Navigation Satellite SystemGPS + Galileo + BeiDou

Hovering Accuracy RangeVertical: / ±0.1 m (with vision positioning) / ±0.5 m (with satellite positioning) / ±0.3 m/3 mins (with ETK positioning) / / Horizontal: / ±0.3 m (with vision positioning) / ±1.5 m (with satellite positioning) / ±0.3 m/3 mins (with ETK positioning)

Internal Storage42GB

AircraftC1 (EU) and UK1

Camera

Image sensorTwo 1/1.1-Inch Square CMOS Sensors / Effective Pixels per Sensor: 64MP

LensFOV: 200° / Format Equivalent: 7.8 mm / Focal Length: 2.5 mm / Aperture: f/1.9 / Focus mode: FF / Focus: 1.5 m to ∞

ISO Range360° Video: / / 8K@60/50/48fps: 100-12800 (Normal/D-Log M) / 8K@30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M) / 6K@60/50/48/30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M) / / 360° Photo: 100-6400 / / Single-Lens Video: 100-12800

Shutter SpeedVideo: 1/8000-1/25 s / Photo: 1/8000-1/30 s

Still Photography ModeSingle Shot: / / In 360° mode, the resolution is 30 MP* or 120 MP**. / / * For 30MP/8K 360° photos, the resolution is 7776×3888 (30 MP) in JPEG and 7680×3840 (29.49 MP) in DNG. / / ** For 120MP/16K 360° photos, the resolution is 15520×7760 (120 MP) in JPEG and 15360×7680 (118 MP) in DNG.

Max Image Size360° Photo: 15520 x 7760

Photo FormatJPEG/DNG

Video Resolution360° Mode: / / 8K (2:1): 7680 x 3840 @ 60/50/48/30/25/24fps / 6K (2:1): 6000 x 3000 @ 60/50/48/30/25/24fps / / Single Lens Mode: / / 4K (4:3)*: 3840 x 2880 @ 60/50/48/30/25/24fps / 4K (16:9): 3840 x 2160 @ 60/50/48/30/25/24fps / 2.7K (4:3)*: 2688 x 2016 @ 120/100/60/50/48/30/25/24fps / 2.7K (16:9): 2688 × 1512 @ 120/100/60/50/48/30/25/24fps / / * Only supported when using DJI Goggles 3/N3 paired with DJI RC Motion 3 or DJI FPV Remote Controller 3.

Video Format360° Video: / / 8K@60/50/48fps: 100-12800 (Normal/D-Log M) / 8K@30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M) / 6K@60/50/48/30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M) / / 360° Photo: 100-6400 / / Single-Lens Video: 100-12800

ISO RangeOSV/MP4 (H.265)

Max Video Bitrate180 Mbps

Colour ModeNormal / D-Log M

EISSingle Lens Mode: / / With RC 2/RC-N2/RC-N3: Supports only RockSteady / With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Supports a switch between RockSteady and HorizonBalancing

Camera FOVSingle Lens Mode: / / With RC 2/RC-N2/RC-N3: Natural Wide / With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Standard (Dewarp)/Wide/Natural Wide

Supported File SystemexFAT

Gimbal

StabilisationSingle-Axis Mechanical Gimbal (tilt) / 360° Virtual Gimbal

Controllable RangeSingle-Axis Mechanical Gimbal: / / Tilt (With RC 2/RC-N2/RC-N3): -30° to 60° / Tilt (With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3): -60° to 60° / / 360° Virtual Gimbal: / / Tilt: -180° to 180° / Roll: -180° to 180°

Max Control SpeedSingle-Axis Mechanical Gimbal: / / Tilt: 100°/s / / 360° Virtual Gimbal: / / Tilt: 100°/s / Roll: 100°/s

Angular Vibration RangeSingle-Axis Mechanical Gimbal: ±0.01°

Sensing

Sensing TypeOmnidirectional vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

ForwardMeasurement Range: 0.5-20 m / FOV: Horizontal 90°, Vertical 90°

BackwardMeasurement Range: 0.5-18 m

LateralMeasurement Range: 0.5-18 m

UpwardMeasurement Range: 0.5-18 m

Downward3D ToF Effective Measurement Height: 10 m / Precise Hovering Range: 0.3-10 m / 3D ToF FOV: Horizontal 60°, Vertical 60° / Measurement Range: 0.5-20 m / FOV: Horizontal 90°, Vertical 90°

Operarting EnvironmentDiffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20% (such as concrete pavement) / Adequate lighting (lux > 1, normal indoor lighting conditions)

Video Transmission SystemO4+

Live View QualitySingle Lens Mode: / / 1080p @ 100*/60/50/48/30/25/24fps / / 360° Mode: / / 1080p @ 60/50/48/30/25/24fps / / * In Single Lens Mode, 1080p/100fps is supported only when the aircraft is used with Goggles 3/N3 and RC Motion 3.

Operating Frequency2.400-2.4835 GHz / 5.170-5.250 GHz* / 5.725-5.850 GHz / / * 5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.

Transmitter Power (EIRP)2.400-2.4835 GHz: / / < 33 dBm (FCC) / < 20 dBm (CE/SRRC/MIC) / / 5.170-5.250 GHz: / / < 23 dBm (CE) / / 5.725-5.850 GHz: / / < 33 dBm (FCC) / < 30 dBm (SRRC) / < 14 dBm (CE)

Communication BandwidthMax 40 MHz

Max Transmission Distance (unobstructed, free of interferenceFCC: 20 km / CE: 10 km / SRRC: 10 km / MIC: 10 km / / Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the camera view during your flight.

Max Transmission Distance (obstructed, with interference)Low Interference and Obstructed by Buildings: Approx. 0-0.7 km / Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km / / Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Lowest LatencyWith RC 2/RC-N2/RC-N3: 1080p/60fps Video Transmission Quality: Approx. 130 ms* / / * Actual experience may vary depending on the environment, usage, and firmware version.

Max Video Bitrate60 Mbps

Max Download SpeedO4+: 10 MB/s / / Wi-Fi 6: 100 MB/s* / / * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, and when internal storage or a high-speed microSD card is used. Download speeds may vary depending on the actual conditions.

Antennas4 antennas, 2T4R

Intelligent Flight Battery

Capacity≥ 2700 mAh

WeightApprox 149g

Nominal Voltage14.32 V

Max Charging Voltage17.2 V

Battery TypeLi-ion

Energy≥ 38.67 Wh

Discharge Rate7C (typical)

Charging Temperature5° to 40° C (41° to 104° F)

Charging TimeWith Charging Hub (100W max charging power): / / One Battery, From 0 to 100%: Approx. 47 min / One Battery, From 10 to 90%: Approx. 31 min / Three Batteries, From 0 to 100%: Approx. 100 min / Three Batteries, From 10 to 90%: Approx. 70 min / / Directly Charging the Drone (65W max charging power):‌ / / One Battery, From 0 to 100%: Approx. 73 min / One Battery, From 10 to 90%: Approx. 51 min / / Data tested under laboratory conditions at 25° C (77° F) and can be used for reference only. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.

Charger

Recommended ChargerSupports DJI 65W Portable Charger and DJI 100W USB-C Power Adapter / With Charging Hub: DJI 100W USB-C Power Adapter is recommended.

Storage

Recommended SD CardsLexar SILVER PLUS 64GB A2 V30 microSDXC / Lexar SILVER PLUS 128GB A2 V30 microSDXC / Lexar SILVER PLUS 256GB A2 V30 microSDXC / Lexar SILVER PLUS 512GB A2 V30 microSDXC / Lexar SILVER PLUS 1TB A2 V30 microSDXC / Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC / Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC / Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC / Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC / / Using Lexar SILVER PLUS series microSD cards may deliver a better photography experience.

WiFi

Protocol802.11 a/b/g/n/ac/ax

Operating Frequency2.400-2.4835 GHz / 5.725-5.850 GHz

Transmitter Power (EIRP)2.4000-2.4835 GHz: / / < 20 dBm (FCC/CE/SRRC/MIC) / / 5.725-5.850 GHz: / / < 26 dBm (FCC/SRRC) / <14 dBm (CE)

Bluetooth

ProtocolBluetooth 5.4

Operating Frequency2.4000-2.4835 GHz

Transmitter Power (EIRP)< 10 dBm

DJI Avata 360 cinematic drone footage

Manuals & documents

2 files

DJI Avata 360 User Manual enPDF · 17.3 MB DJI Avata 360 Release NotesPDF · 71 KB

Frequently asked questions

What sets DJI Avata 360 apart?⌄

DJI Avata 360 is DJI’s first 360° drone. It delivers an exhilarating, immersive flight experience while enabling creative 360° aerial filming, helping you effortlessly nail epic shots.

1. 1-Inch Flagship Imaging*, 8K/60fps HDR Video**: Avata 360 is equipped with two new-generation 1/1.1-inch square CMOS sensors. The square design delivers panoramic coverage equivalent to that of a 1-inch sensor.

2. DJI O4+ Video Transmission System: Enables ultra-long-range video transmission of up to 20 km.***

3. Omnidirectional Obstacle Sensing ****, Integrated Propeller Guard: Equipped with forward-facing LiDAR, Avata 360 features nightscape omnidirectional obstacle sensing**** in 360° mode. The integrated propeller guard adds another layer of safety.

4. Infinite Creativity From One Take**: Capture a full 360° view in a single flight. In post, reframe from any perspective to turn one clip into multiple creations.

5. Spotlight Free** for Instant Shareable Footage: Spotlight Free** locks onto a moving subject and assists with camera movement. Simply fly and effortlessly nail epic shots—even without editing.

6. Supports the 360° Virtual Gimbal, allowing you to go beyond physical gimbal limits for dynamic camera moves. You can also use a remote controller with integrated screen for precise camera movement, or enjoy immersive flight with intuitive head tracking via goggles and motion controller. Experience FPV flight and aerial filming in one drone.

7. 360° and Single Lens, Flexible Dual Modes****: Seamlessly switch from 360° to Single Lens mode for classic Avata-style filming in 4K/60fps.

*Only available in 360° mode. When capturing 360° content, each of DJI Avata 360's two CMOS sensors features an imaging area equivalent to that of a 1‑inch CMOS sensor with a 4:3 aspect ratio.

**Only available in 360° mode.

***Measured in an outdoor, open environment, without interference, and with FCC compliance. The 20km transmission distance is only achievable under FCC standards. The above data shows the farthest communication range for one-way, non-return flights. Always pay attention to reminders in the app during your flight.

****Omnidirectional Obstacle Sensing is only effective on surfaces with discernible textures and in lighting conditions of 1 lux or greater, and is available only in 360° mode. In Single Lens mode, only forward obstacle sensing is supported. Refer to the official DJI website or the product's user manual for details.

For more details and to purchase DJI Avata 360 drones, Fly More Combos, and accessories, click here.

What DJI Avata 360 packages are available? What is the difference between them?⌄

DJI Avata 360 is available in numerous versions to cater to different user requirements.

• DJI Avata 360 (DJI RC 2): Includes DJI RC 2, one Intelligent Flight Battery, and more. Ready to fly right out of the box.

• DJI Avata 360 Fly More Combo (RC 2): Includes DJI RC 2, Two-Way Charging Hub, Sling Bag, three Intelligent Flight Batteries, and more, allowing you to capture spectacular moments with ease.

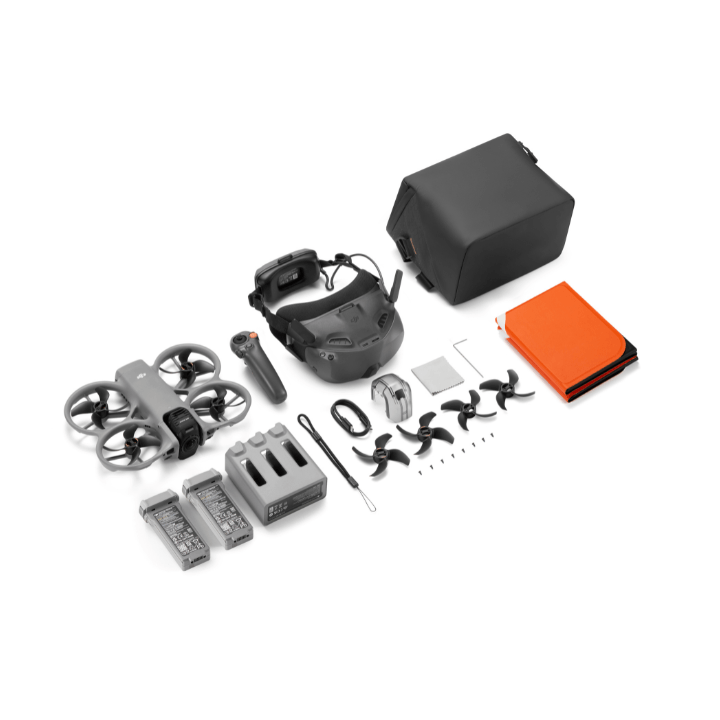

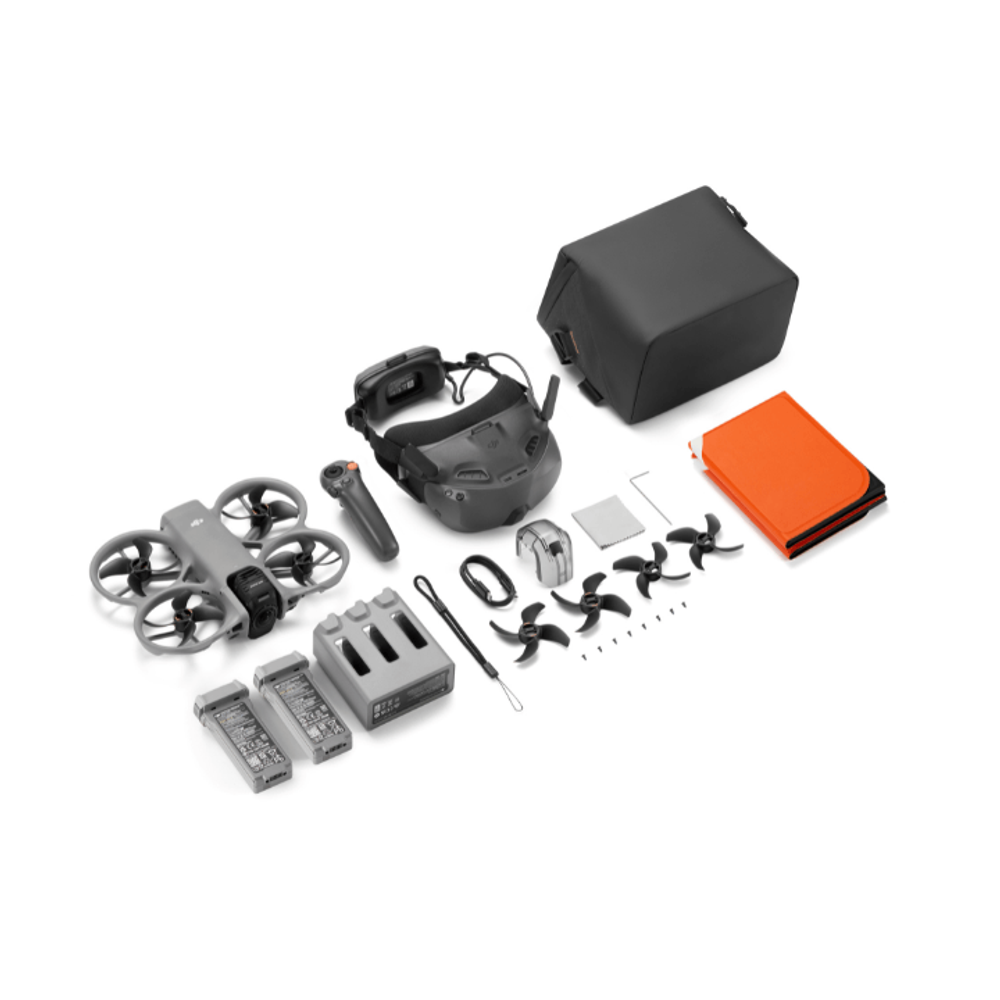

• DJI Avata 360 Motion Fly More Combo: Includes DJI Goggles N3, DJI RC Motion 3, Two-Way Charging Hub, Sling Bag, three Intelligent Flight Batteries, and more, delivering an immersive flight experience with 360° imaging.

The table below shows what comes in each DJI Avata 360 package.

	DJI Avata 360 (DJI RC 2)	DJI Avata 360 Fly More Combo (DJI RC 2)	DJI Avata 360 Motion Fly More Combo
DJI Avata 360	1	1	1
DJI RC Motion 3			1
DJI Goggles N3			1
DJI RC 2	1	1
DJI Avata 360 Intelligent Flight Battery	1	3	3
DJI Avata 360 Two-way Charging Hub		1	1
DJI Avata 360 Gimbal Protector	1	1	1
DJI Avata 360 Spare Propellers (Pair)	2	2	2
Screwdriver	1	1	1
DJI Avata 360 Sling Bag		1	1
DJI Avata 360 Foldable Landing Pad	1	1	1
DJI Avata 360 Lens Cleaning Cloth	1	1	1
USB-C to USB-C Data Cable	1	1	1
DJI RC Motion 3 Lanyard			1

Which remote controllers and goggles are compatible with DJI Avata 360?⌄

The DJI Avata 360 is compatible with a range of DJI controllers and goggles, enabling a versatile flight and control experience.

DJI Avata 360 can be used with:

• Standard Remote Controller: DJI RC 2, DJI RC-N2, DJI RC-N3.

• Motion Controller (requires pairing with DJI Goggles 3 or DJI Goggles N3): DJI RC Motion 3.

• FPV Remote Controller (requires pairing with DJI Goggles 3 or DJI Goggles N3): DJI FPV Remote Controller 3

• Goggles (require pairing with DJI RC Motion 3 or DJI FPV Remote Controller 3): DJI Goggles 3, DJI Goggles N3.

How do the features of DJI Avata 360 differ across various control methods and shooting modes?⌄

The DJI Avata 360 features vary based on your control method and shooting mode.

DJI Avata 360° Mode:

• 8K/60fps HDR video recording, FocusTrack, the 360° Virtual Gimbal, omnidirectional obstacle sensing, and other 360°‑specific features are available only in 360° mode. Some intelligent features vary by control method.

• Only available when using goggles paired with a motion controller: Features such as acrobatic maneuvers and Head Tracking.

• Only available when used with a standard remote controller: Features such as QuickShots and ActiveTrack 360° in FocusTrack.

Single Lens Mode:

• This mode only supports video recording, with a maximum resolution of 4K/60fps.

• When used with goggles and motion controller, you can fly and shoot in First-Person View (FPV) for better flat video image quality.

• When used with a standard remote controller, you can also fly and shoot in First-Person View (FPV). The footage tilts with the drone's attitude, giving your footage a dynamic, FPV-style look.

What is DJI Avata 360's max wind speed resistance and max take-off altitude?⌄

The DJI Avata 360's maximum wind speed resistance is 10.7 m/s (Level 5) and the maximum takeoff altitude is 4500 metres.

What is the flight time of the DJI Avata 360?⌄

The DJI Avata 360 can fly for up to 23 minutes.

Is DJI Avata 360 waterproof?⌄

No, the DJI Avata 360 is not waterproof.

Avoid contact with water during use, as it may damage the device.

If it rains during the flight, return and land as soon as possible, and wait until the aircraft is fully dry inside and out before using it again

What are the advantages of DJI Avata 360’s native 8K 360° Video?⌄

The DJI Avata 360 features two newly-designed square CMOS sensors with optimised pixel arrangement, increasing each sensor's vertical pixel count to 4,000, up from 3,000 on traditional rectangular sensors.

This enables native 8K (4K+4K) 360° video recording with dual lenses.

With large 2.4μm pixels for enhanced light sensitivity and up to 13.5 stops of dynamic range, combined with an f/1.9 aperture, it delivers excellent high dynamic range footage and low-light image quality in both high-contrast scenes and dim environments.
